Chapter 1 — Using the PB21 and PB31 Mobile Receipt Printer
PB21 and PB31 Mobile Receipt Printer User Guide 3
Identifying the Parts of the Printer
Use this illustration to familiarize yourself with some of the features
of the printer.

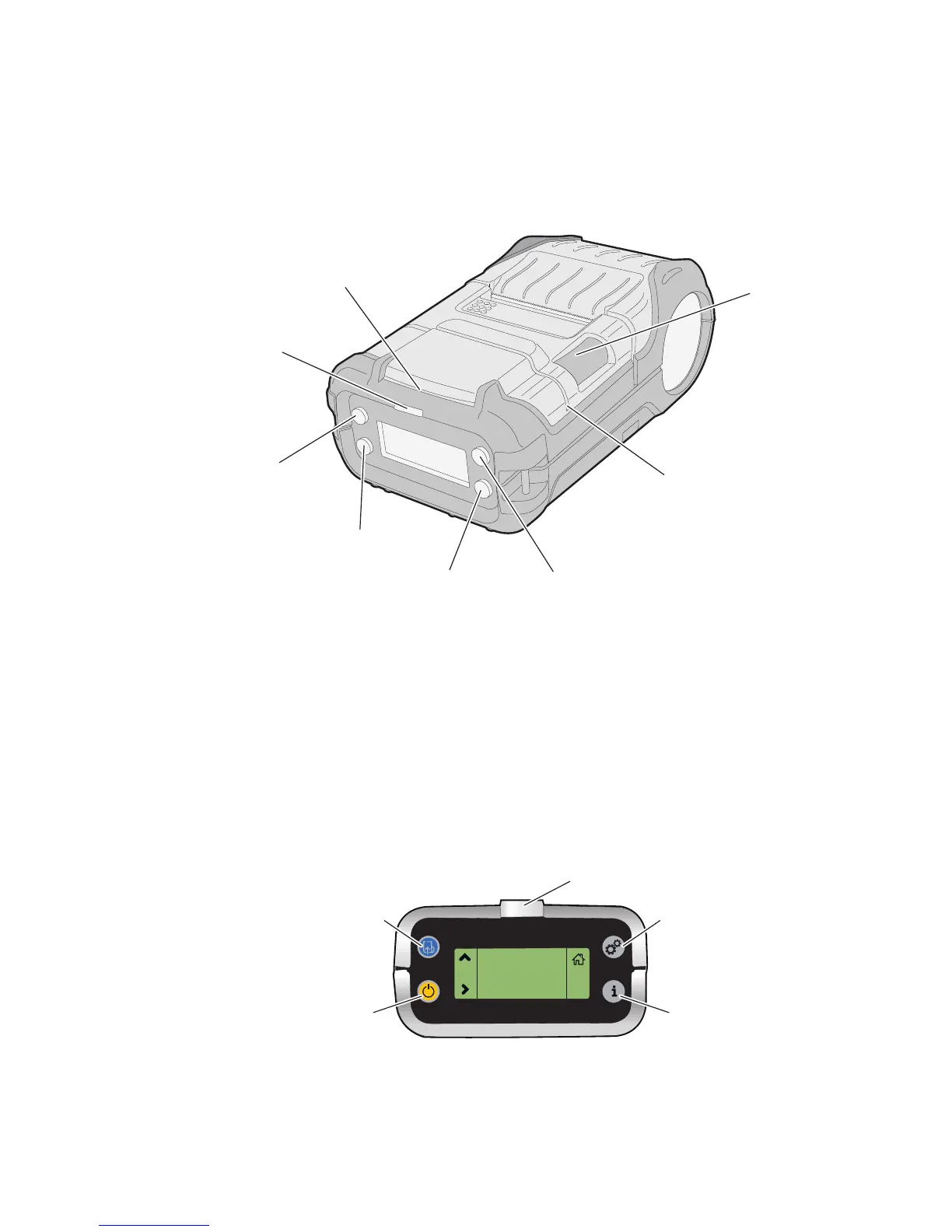

PB21 and PB31 : This illustration shows the important features of the printer. A
weather-resistant flap protects the communications ports and the external
power connector.
Understanding the Control Panel
The printer control panel contains four buttons, a liquid crystal
display (LCD), and one LED indicator. Use the four buttons to
navigate the menu system and perform functions on the PB21 and
PB31 printer.
Printer Control Panel
Ready-to-Work indicator
Smart card reader
Media cover
release button
Feed button
Standby
button
Information
button
Setup
button
Magnetic stripe
reader
OK
SETUP:
SER-COM
Standby button Info button
Feed button
Setup button
Ready-to-Work
indicator
