9
DANGER: Removal of any connector, disassembly of
transducer, shortening of any cable or use of any cable
other than that supplied by Interphase will void your
warranty (no exceptions).

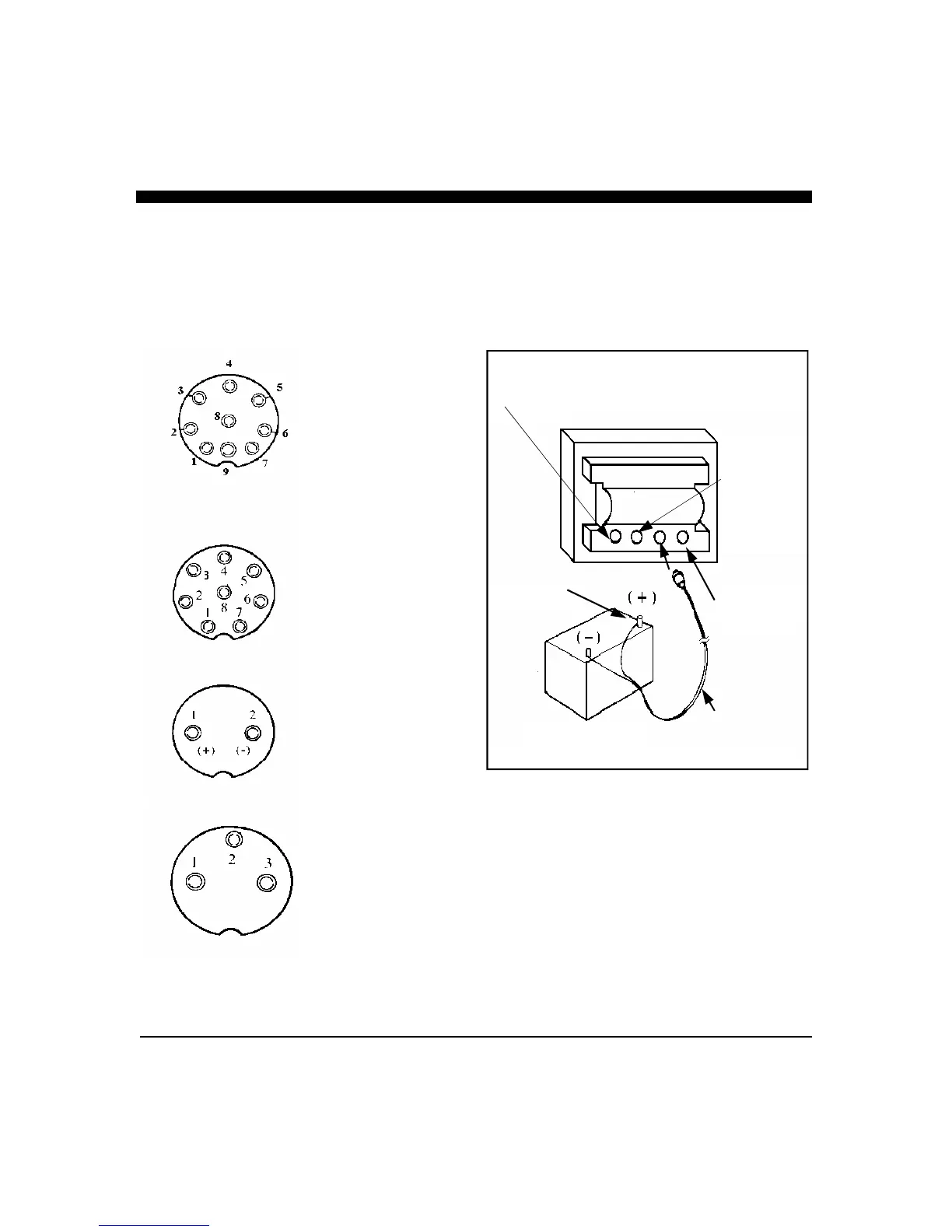

Cable Connectors
(view from front of female plug)
9 Pin Spare:
(Not Used - reserved for
future use)
8 Pin Transducer:
1 Speed Data
2 +5VDC
3 Depth element
4 Depth shield
5 Depth element
6 +Temp. Sensor
7 -Temp. Sensor
8 Shield/Ground
Power Connector:
1 +12 vdc
2 - (Ground)
NMEA Input:
1 Data
2 Return ( Ground)
3 N/C
N/C = No Connection
12 Volt Battery
Red Wire NMEA 0183
Input (3-pin)
Spare
(9-pin)
12 VDC
Power Cable
(2-pin)
Transducer:
Depth /
Speed /
Temp.
(8-pin)
