76 User Manual
When the package containing the chart plotter is first opened, please check it for
the following contents (if any parts are missing contact the dealer the chart plot-
ter was purchased from):
♦ External bracket and I/O cable 1,5 mt/5,9"
♦ Chart plotter's protective cover
♦ Fuse 2 Amp. + fuseholder
♦ User Manual
♦ Flush mounting kit (ONLY on chart plotter with EXTERNAL SMART GPS Receiver)
♦ Smart DGPS WAAS Receiver with cable 15 mt/45 feet (ONLY on chart plotter
with EXTERNAL SMART GPS Receiver)

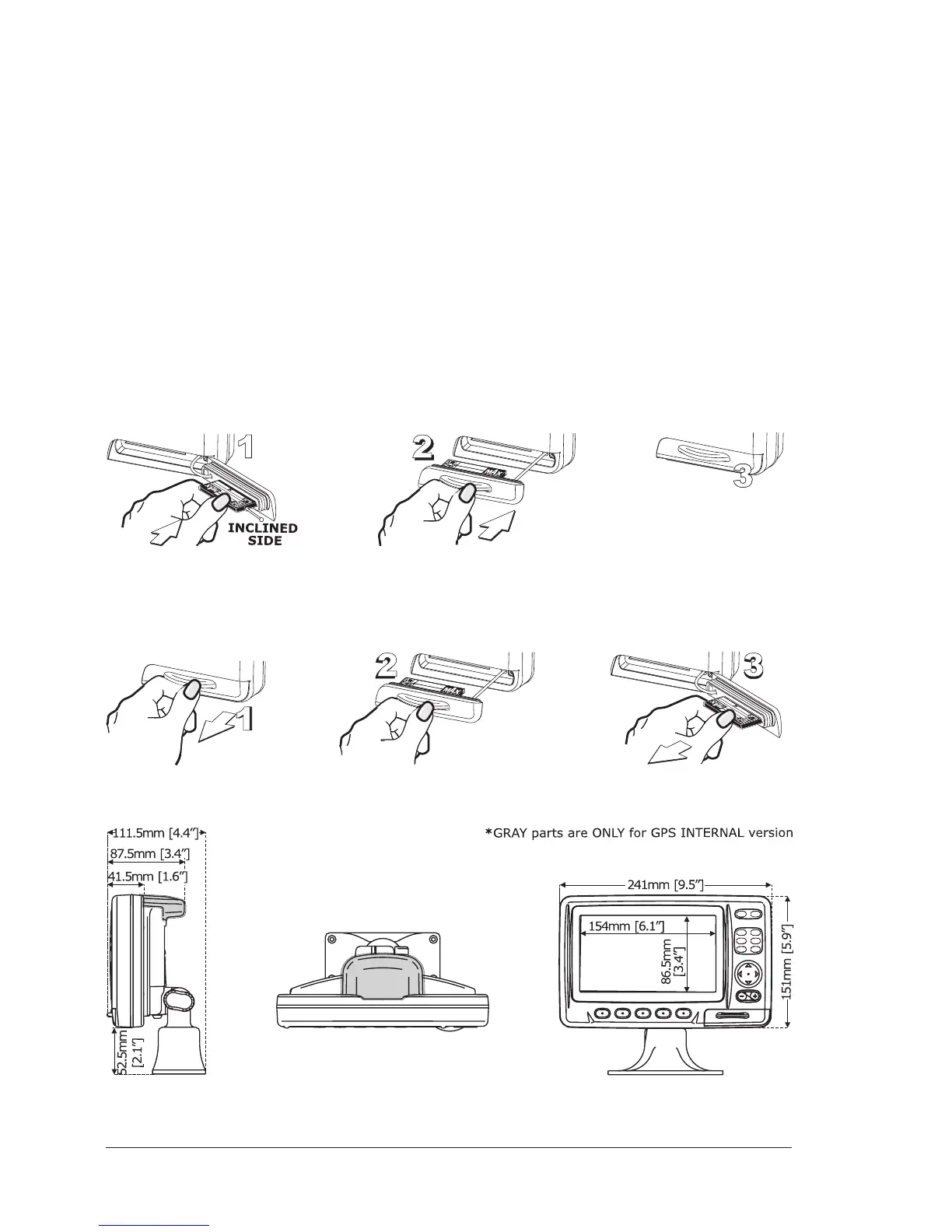

C-CARD INSERTING/REMOVING PROCEDURE
Inserting the C-CARD
Open the door, hold the C-CARD by the long side so that you can see the label and
gently push the C-CARD into the door slot (1). Close the door pushing the C-CARD
in as far as it will go to hold fixed into the chart plotter slot (2). When finished the
door must be right closed (3).
Removing the C-CARD
To remove the C-CARD inserted in the chart plotter open the door (1). The C-CARD
will eject out of the chart plotter slot remaining fixed into the door (2). Then
remove the C-CARD from the slot (3).
CHART PLOTTER DIMENSIONS
