82 User Manual
♦ Video Input : PAL or NTSC video signals automatically
selected (2 input)
♦ Cartography : C-MAP C-CARD
♦ Operating temperature range: 0/+55 degrees Celsius
♦ Memory : Non volatile with battery back-up
♦ Keyboard : Silicon rubber, backlight
♦ Weight : Kg 1,6
When the package containing the chart plotter is first opened, please check it for
the following contents (if any parts are missing contact the dealer the chart plot-
ter was purchased from):
♦ External bracket and I/O cable 1,5 mt/5,9"
♦ Chart plotter's protective cover
♦ Fuse 2 Amp. + fuseholder
♦ User Manual
♦ Flush mounting kit
♦ Smart DGPS WAAS Receiver GPH10 with cable 15 mt/45 feet
C-CARD INSERTING/REMOVING PROCEDURE
Inserting the C-CARD
Hold the C-CARD by the long inclined side so that you can see the C-MAP label .
Open the door, gently push the C-CARD into one of the two slots; push the C-CARD
in as far as it will go to hold fixed into the slot and close the door.
Removing the C-CARD
Open the door and eject the C-CARD you wish to remove out of the slot.

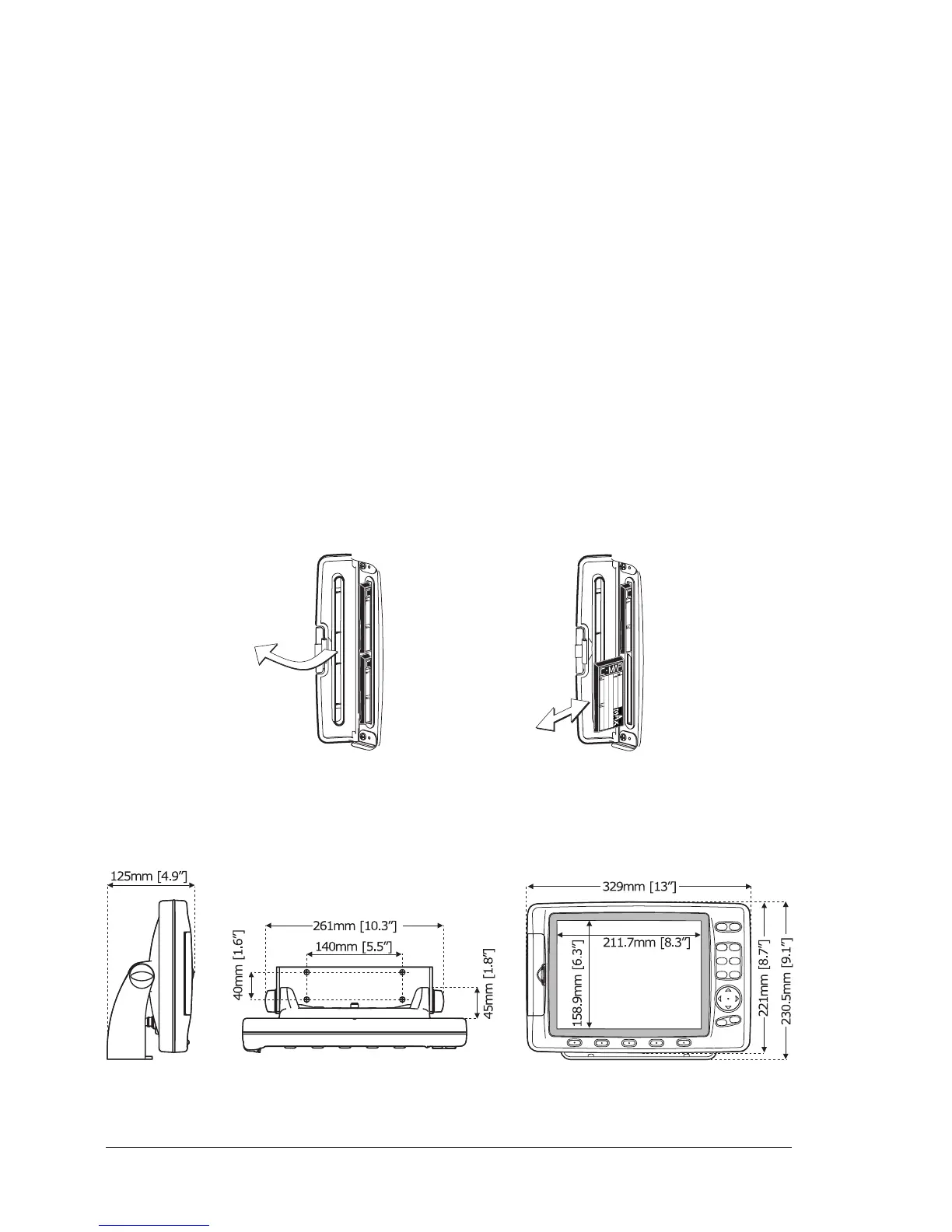

CHART PLOTTER DIMENSIONS
To Next Page
