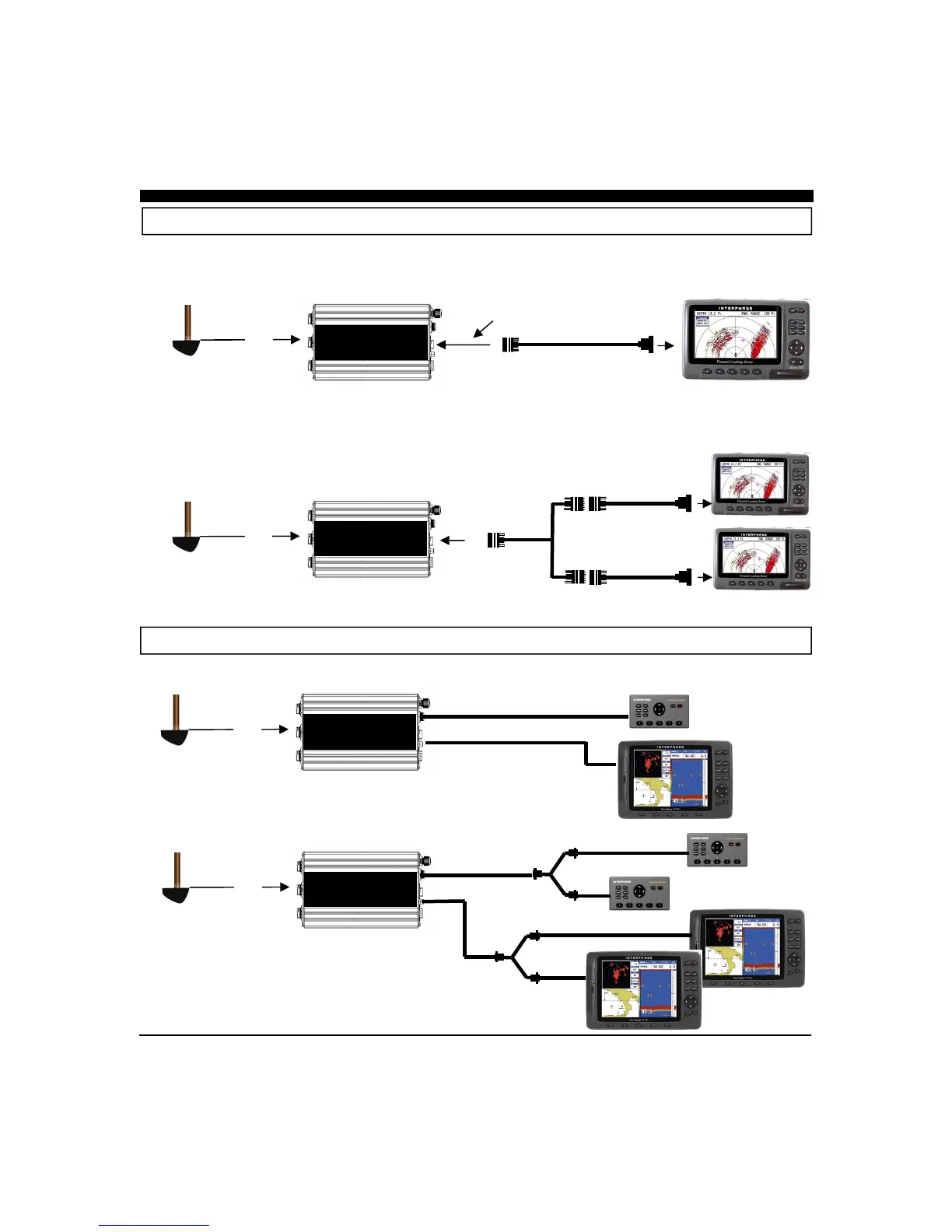

CONNECTIONS WITH INTERPHASE VGA DISPLAY
30’
TRANSDUCER


VGA Female to 9-Pin Male Cable.
Can Extend with standard Female to Male
VGA Cable or standard Male to Male VGA
Cable with Gender Changer.
SPECIAL INTERPHASE DISPLAY
WITH INTERGRAL KEYPAD VGA
CABLE SPLITTER.
P/N #04-1095-000R
(Female to two Males)
30’
TRANSDUCER


MULTIFUNCTION OR VIDEO ENABLED DISPLAYS (For Furuno Video Displays, See Next Page)
30’
TRANSDUCER


30’
TRANSDUCER


Keypad Splitter P/N 04-1080-000R
Video Splitter P/N 04-1094-000R
(Female to Two Male RCA Plugs)
Kaypad Cable—6 wire
Standard Video Cable (RCA Plugs)
TWO- STATIONS
SINGLE STATION
TWO- STATIONS
SINGLE STATION
