24

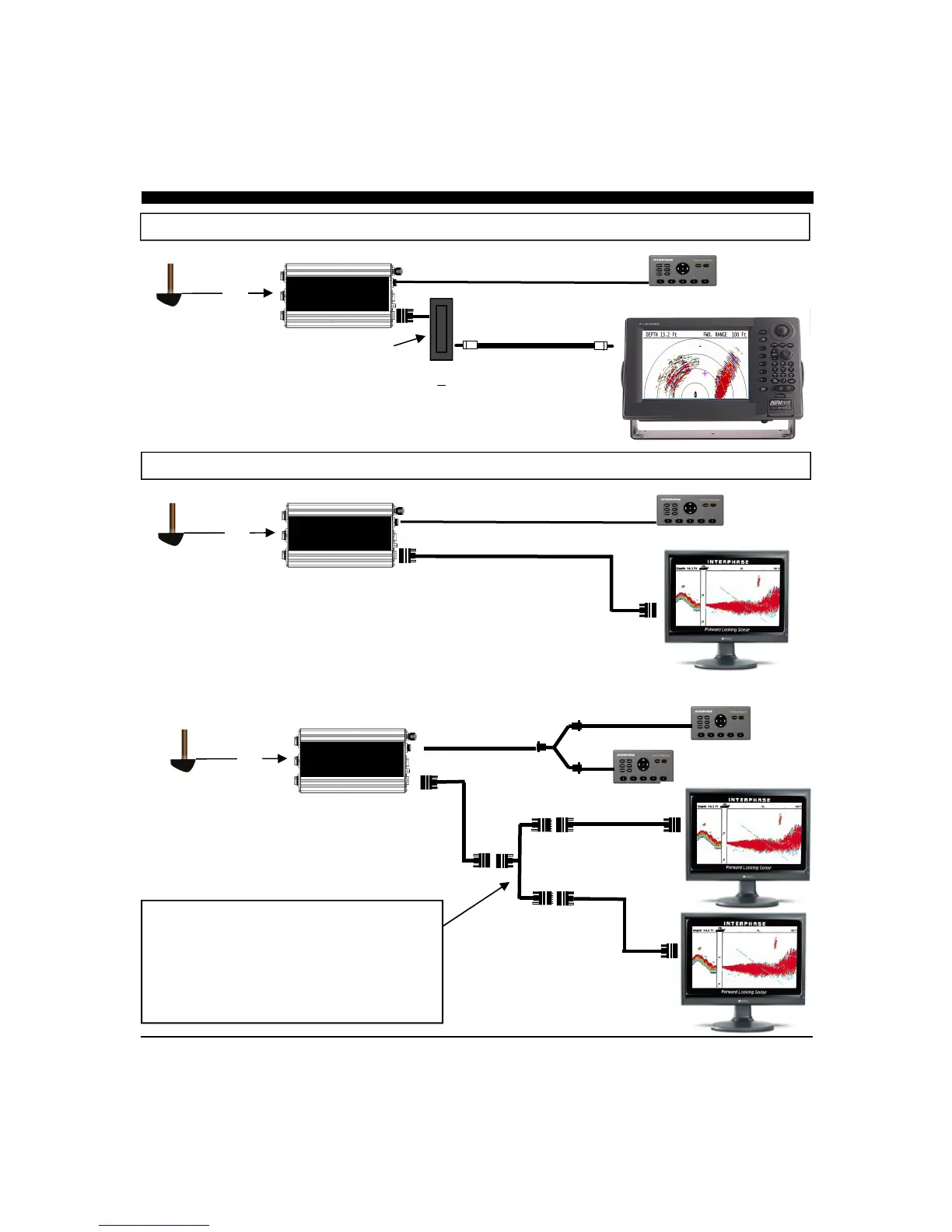

CONNECTING TO FURUNO COMPOSITE VIDEO INPUT DISPLAYS
30’
TRANSDUCER


Optional VGA to Video
Encoder
(Required with Furuno Video
System)
Standard Video Cable (RCA Plugs)
FURUNO VIDEO ENABLED DISPLAY
SINGLE STATION
30’
TRANSDUCER


30’
TRANSDUCER


Keypad Splitter P/N 04-1080-000R
SINGLE STATION
CONNECTING TO VGA DISPLAYS
VGA Splitter P/N 04-1092-000R
Female to two Males
AMPLIFIED VGA CABLE SPLITTERS
Some paralleled VGA monitors cause a reduction in VIDEO signal and
picture brightness.
An optional alternative to the passive VGA cable splitter, shown at right, is a
amplified VGA cable splitter. Contact Interphase Customer Support (831)
477-4944, ext 16 or visit the SE-200 page on our website at www.interphase-
tech.com for more information about this accessory.
