Page 13
Opening the Control Base
(Using 28426 as example, same layout and construction)

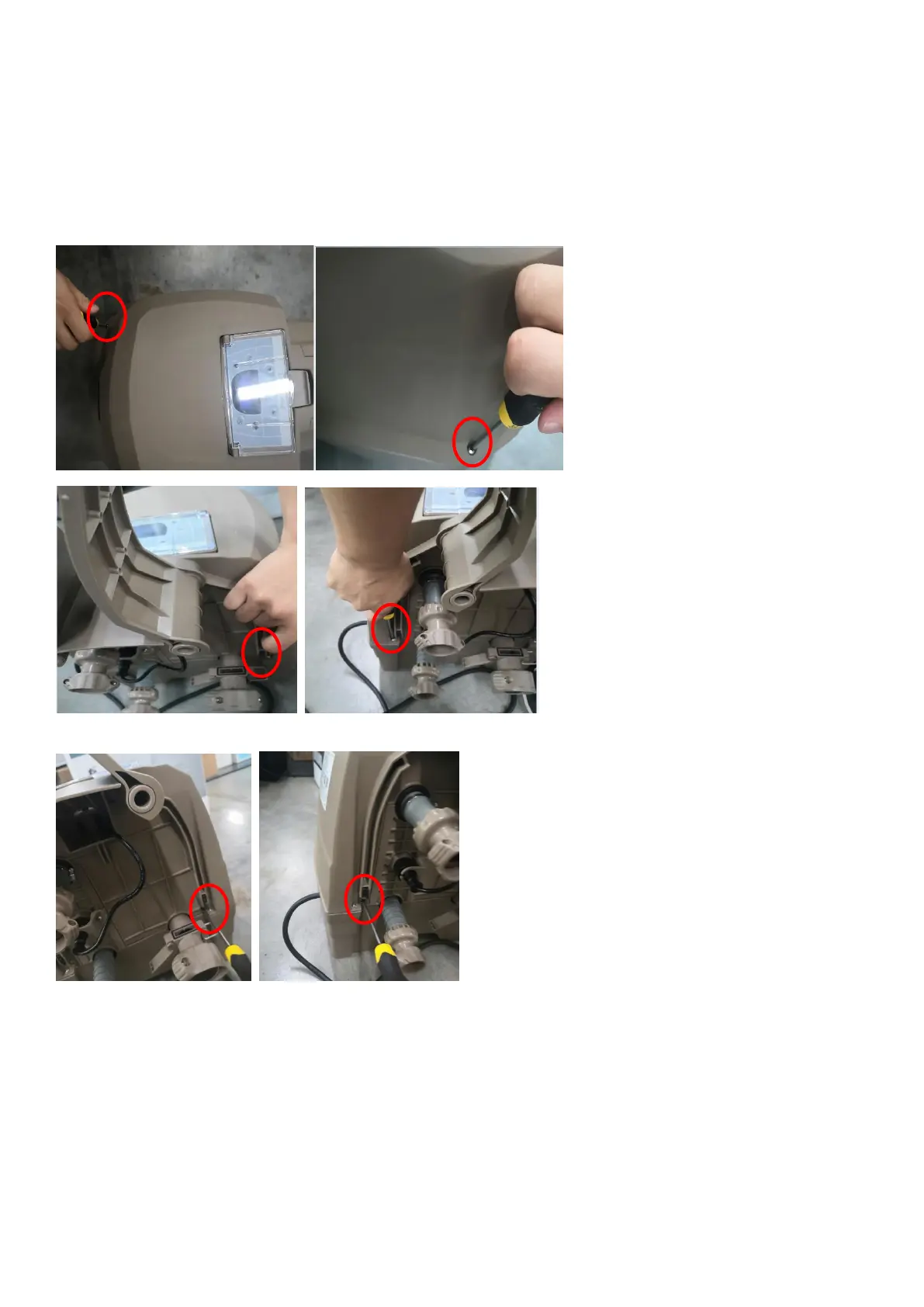

Begin by removing 6 screws around the enclosure. Then take strength to pull out the connector.
Removing 4 vertical screws around the cover that hold enclosure and then remove 2 horizontal
screws.
Removing 2 screws near on side, remove the panel from control base
The switch controller board connector is attached to the main circuit board, lift the cover vertically
carefully to ensure the cable is not pulled and connection between main circuit board and cover is
not damaged.
