PCB Schematic

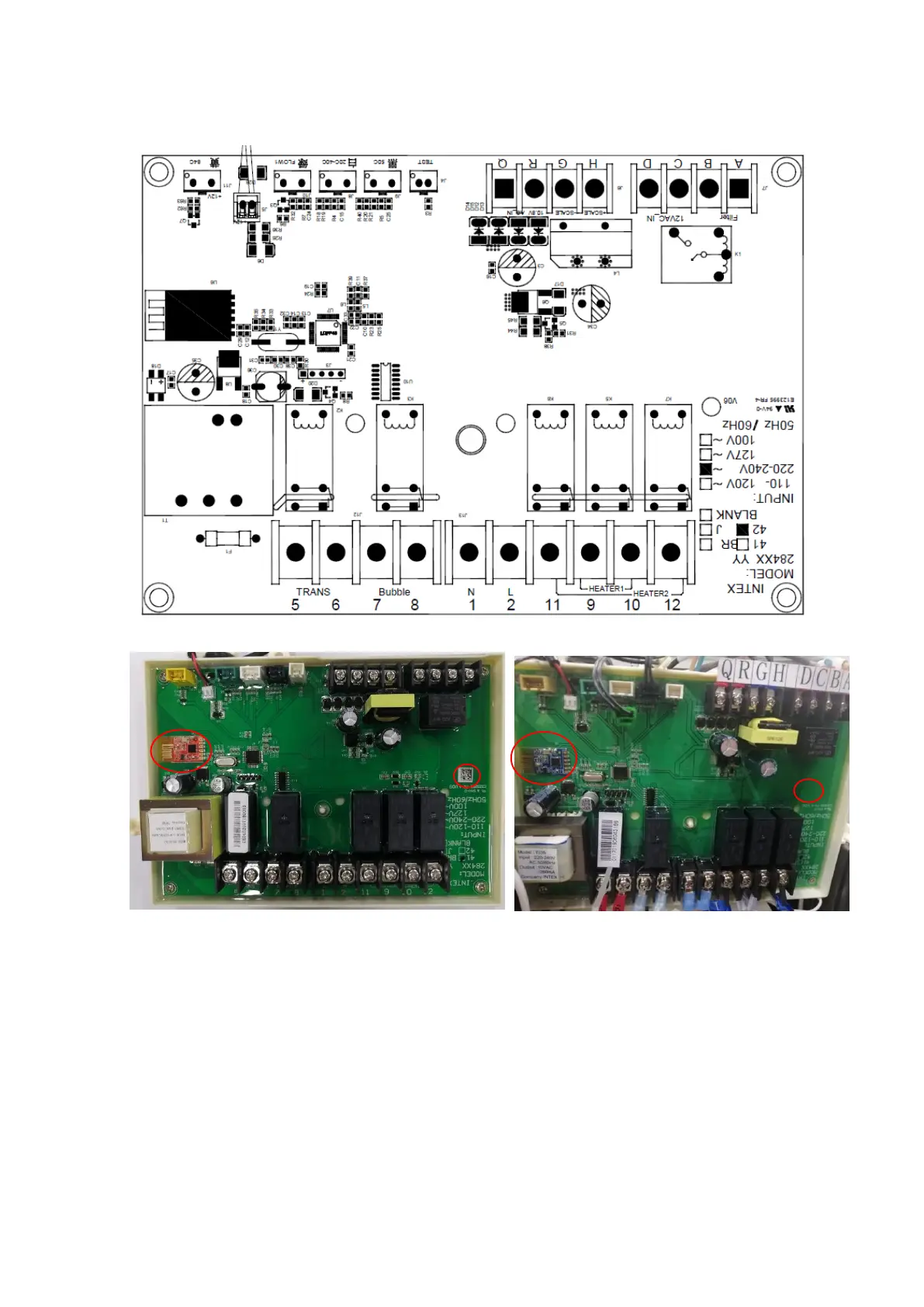

New version Wi-Fi spa main circuit board has a QR code.

New version Wi-Fi spa has a Wi-Fi chip with red color.

New

Old
