SAVE THESE INSTRUCTIONS
Page 13
(103CD) MODEL 8111 (MODEL 8110 + MODEL 51) DELUXE SALTWATER SYSTEM (SALT IN POOL) & FILTER PUMP ENGLISH 7.5” X 10.5” PANTONE 295U
12/25/2007
SSEETT--UUPP IINNSSTTRRUUCCTTIIOONNSS

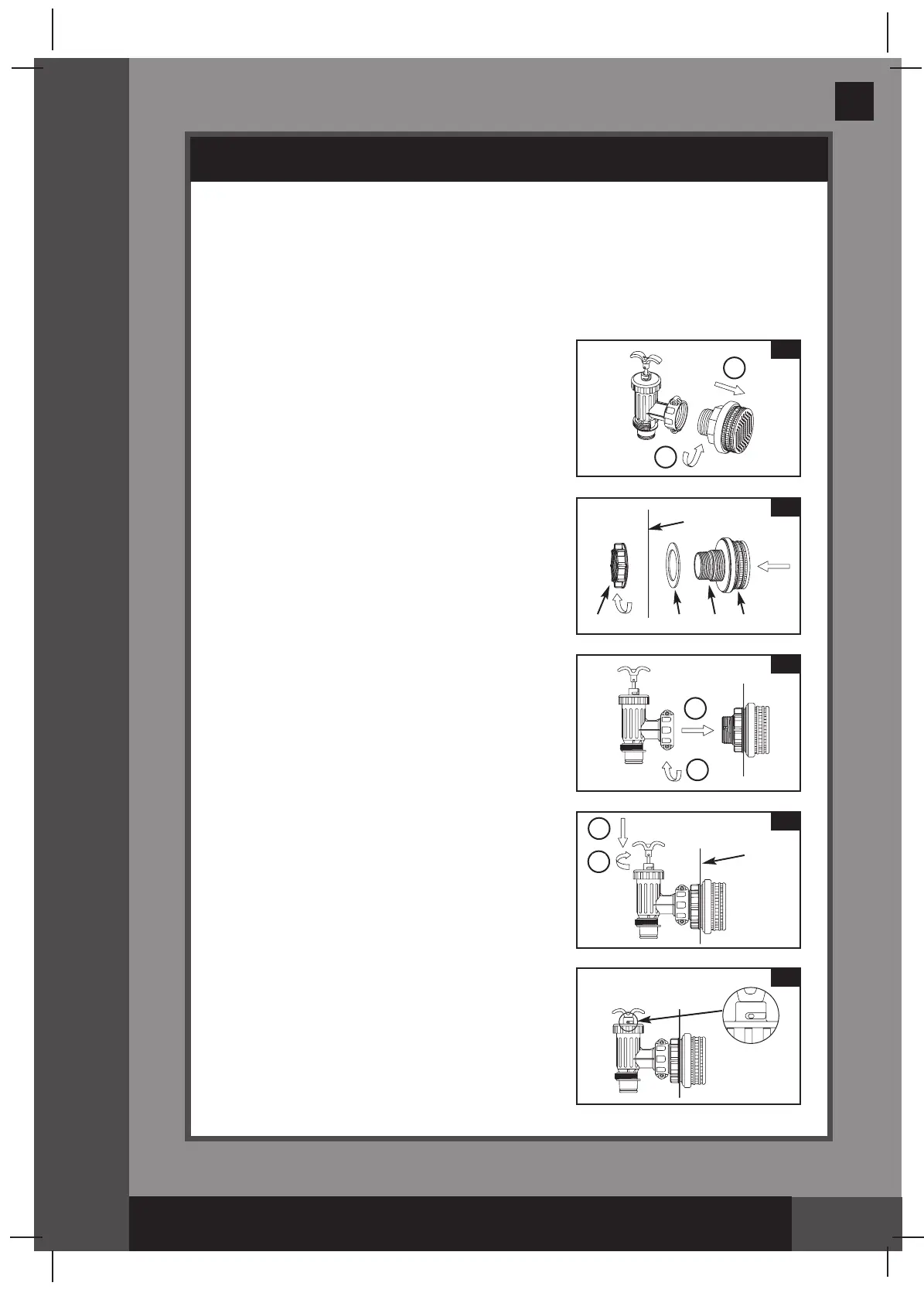

Strainer & Plunger Valve Set Up (large AGP)
The strainer grid prevents large objects from jamming and/or damaging the
filter pump and the plunger valve assembly prevents water from flowing into
the filter pump while the filter cartridge is being placed or cleaned. If your
pool has inflatable top ring, install the strainer, nozzle and plunger valve
before inflating the pool liner top ring.
STRAINER & PLUNGER VALVE SET-UP (continued)
1. Grasp the strainer and plunger valve
mechanism.
2. In a counter-clockwise motion unscrew
plunger valve union from the threaded
strainer connector (24). Be careful not to
lose the step rubber washer (21). Place the
plunger valve on the ground in a safe
place (see drawing 1).
3. In a counter-clockwise motion unscrew the
strainer nut (22) from the threaded
connector (24). Leave the flat washer (23)
on the connector (24).
4. Install the strainer and plunger valve at the
lower position of pool outlet (marked "+").
From the inside of the pool liner insert the
connector (24) into one of the pre-cut holes
with the washer remaining on the
connector to be placed against the inside
of the liner wall.
5. With the flat side of the strainer nut (22)
facing the outside wall of the liner in a
clockwise motion screw the strainer
nut (22) back onto the threaded
connector (24) (see drawing 2). Before
assembly, lubricate the threads with a
petroleum jelly.
6. Finger tighten the strainer grid (26) and the
strainer nut (22) onto the threaded
connector (24).
7. Grasp the plunger valve assembly. Make
sure the step washer (21) is in place.
8. In a clockwise motion screw the plunger
valve union back onto the threaded
connector (24) (see drawing 3).
9. Examine the plunger valve to see if the
handle is pushed fully down to the "0/1"
position. If not, then grasp the handle at
the top and push down turning the handle
in a clockwise direction until the plastic
protruding notch anchors in the "0/1"
position. This will prevent water from
flowing out during filling (see
drawings 4.1 & 4.2).
1
2
3
4.1
4.2
23 24 26
INSIDE
LINER WALL
INSIDE
LINER
WALL
22
2
1
1
2
1
2
To Next Page
