FLOW SENSOR CLEANING
ELECTROLYTIC CELL CLEANING
MMAAIINNTTEENNAANNCCEE
IMPORTANT
Close plunger valves or insert black hat-like plugs in strainer opening to
prevent water spillage. Open plunger valves or remove plugs when
maintenance is completed.
WARNING
Always unplug this product from the electrical outlet before removing,
cleaning, servicing or making any adjustment to the product.
1. In a counter-clockwise motion unscrew the collar of the flow sensor (11) and
remove it from the flow sensor conduit (15). See “Part Reference”.
2. If deposits and debris are seen on the surface of the flow sensor, then use a
garden hose to wash it off.
3. If flushing does not remove the deposits, use a plastic brush (do not use a
metal brush) to clean the surface and the hinge if necessary.
4. After the flow sensor has been inspected and cleaned, align the locator notch
on the flow sensor to the connection ridge in the conduit, turn the collar in a
clockwise motion tightening the sensor back into its position. Do not over
tighten.

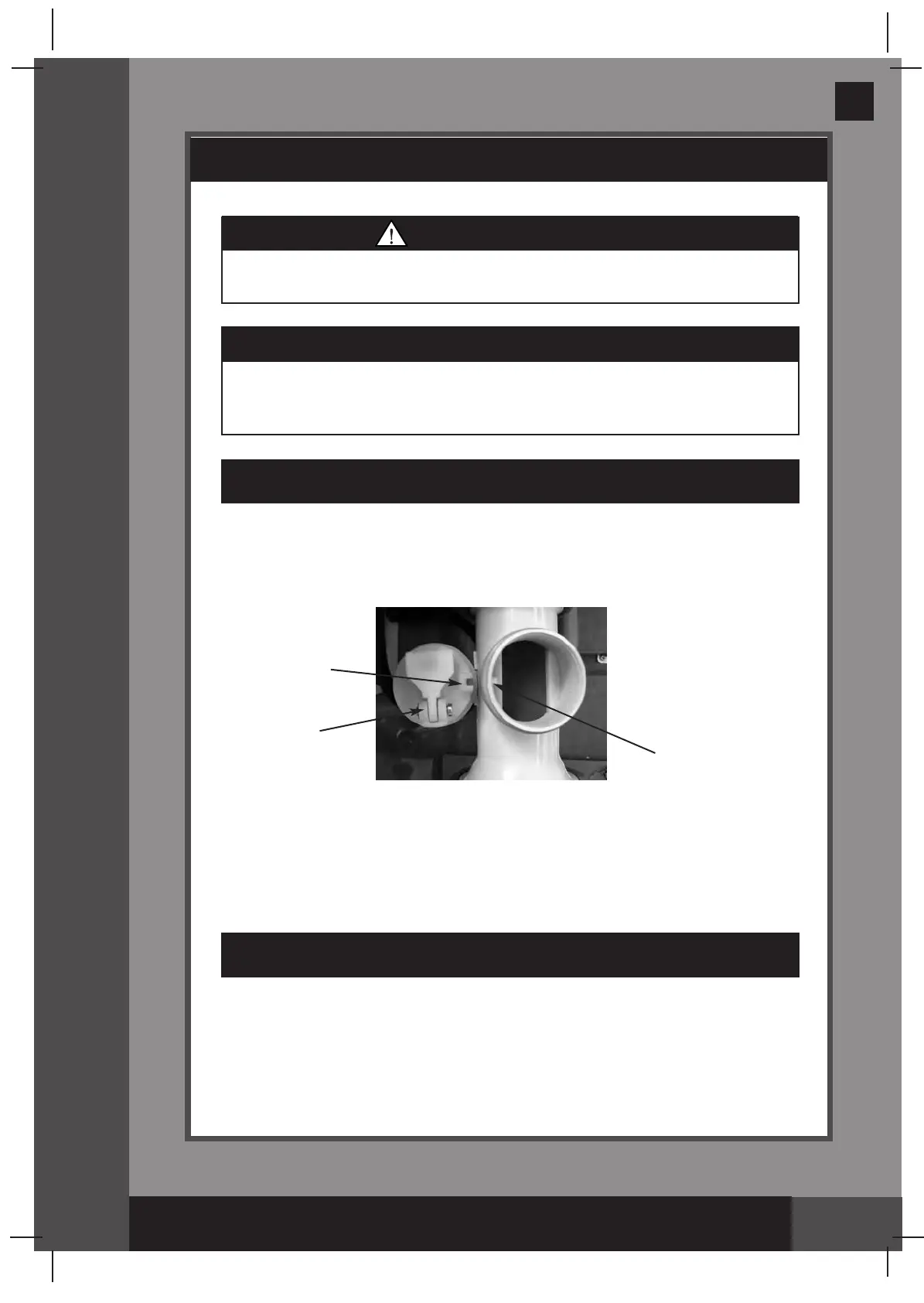

Connection Ridge
Locator Notch
Hinge
The electrolytic cell (13) has a self cleaning function incorporated into the electronic
control's programming. In most cases this self cleaning action will keep the cell
working at optimum efficiency. If the pool water is hard (high mineral content) the
cell may require periodic manual cleaning. Follow the cleaning instructions
following. To maintain maximum performance, it is recommended that you open and
visually inspect the electrolytic cell (13) every 2-3 months.
