(257IO) MODEL 602 FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 05/24/2016
257A
SAVE THESE INSTRUCTIONS
English
Page 4

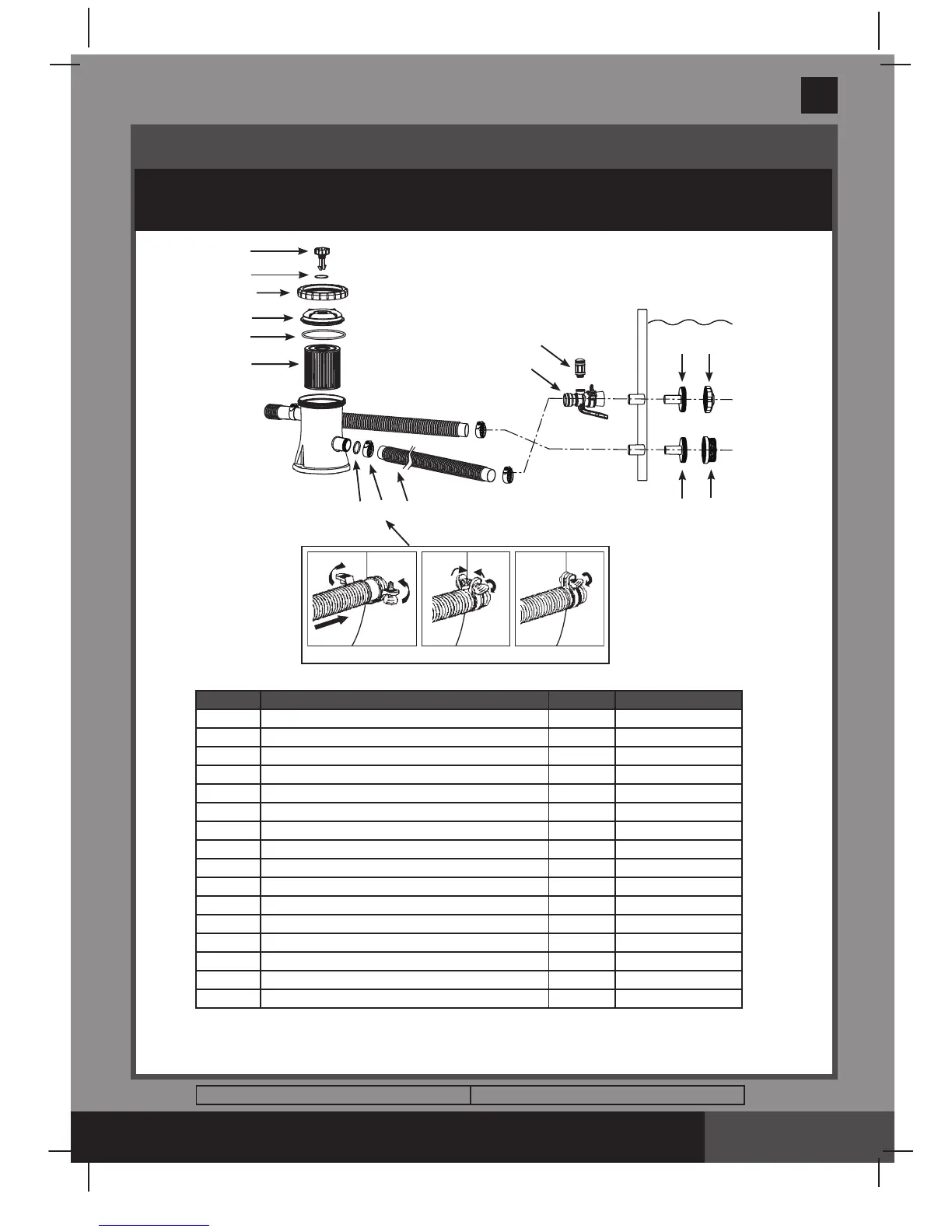

PARTS REFERENCE
Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.
When ordering parts, be sure to quote the model number and part numbers.
NOTE:
Drawings for illustration purpose only. Actual product may vary. Not to scale.
REF. NO.
DESCRIPTION QTY. SPARE PART NO.
1 AIR RELEASE VALVE 1 10460
2 VALVE O-RING 1 10264
3
FILTER HOUSING COVER
1
11917
4 COVER SEAL 1
11919
5
FILTER CARTRIDGE (29007)
1
6 HOSE SEAL 2 10134
7 HOSE CLAMP 4 11489
8 HOSE 2
10399
9 STRAINER CONNECTOR
1
11070
10
POOL INLET JET NOZZLE
1
12364
11 STRAINER GRID 1
12197
12 THREADED FILTER HOUSING COLLAR 1
11918
13 INLET STRAINER CONNECTOR 1 12365
*14 AIR JET VALVE 1 12363
*15 POOL INLET AIR ADAPTOR 1 12366
*16 AIR JET VALVE CAP (NOT SHOWN) 1 12373
Type of lter medium Synthetic cartridge #29007
No tools are required for the assembly.
" * ":
Optional.
1
2
3
4
5
6
7 8
13
9
11
10
ABC
12
15
14
