(257IO) MODEL 602 FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 05/24/2016
257A
SAVE THESE INSTRUCTIONS
English
Page 6
SETUP INSTRUCTIONS (continued)
It is essential to change any damaged element or set of elements as soon as possible.
Use only parts approved by the manufacturer.
To inspect and change the filter cartridge, disconnect line cord, unscrew the pool inlet
nozzle
(10)
and strainer grid
(11)
from the strainer connectors and insert the hat-like plugs
into the strainer connectors before servicing the filter. After service, open the air release valve,
remove the plugs, allow any air to escape through the valve before tightening the valve again
and replace the pool inlet nozzle
(10)
and strain grid
(11)
. The pump is now primed with water
again and may be turned on.

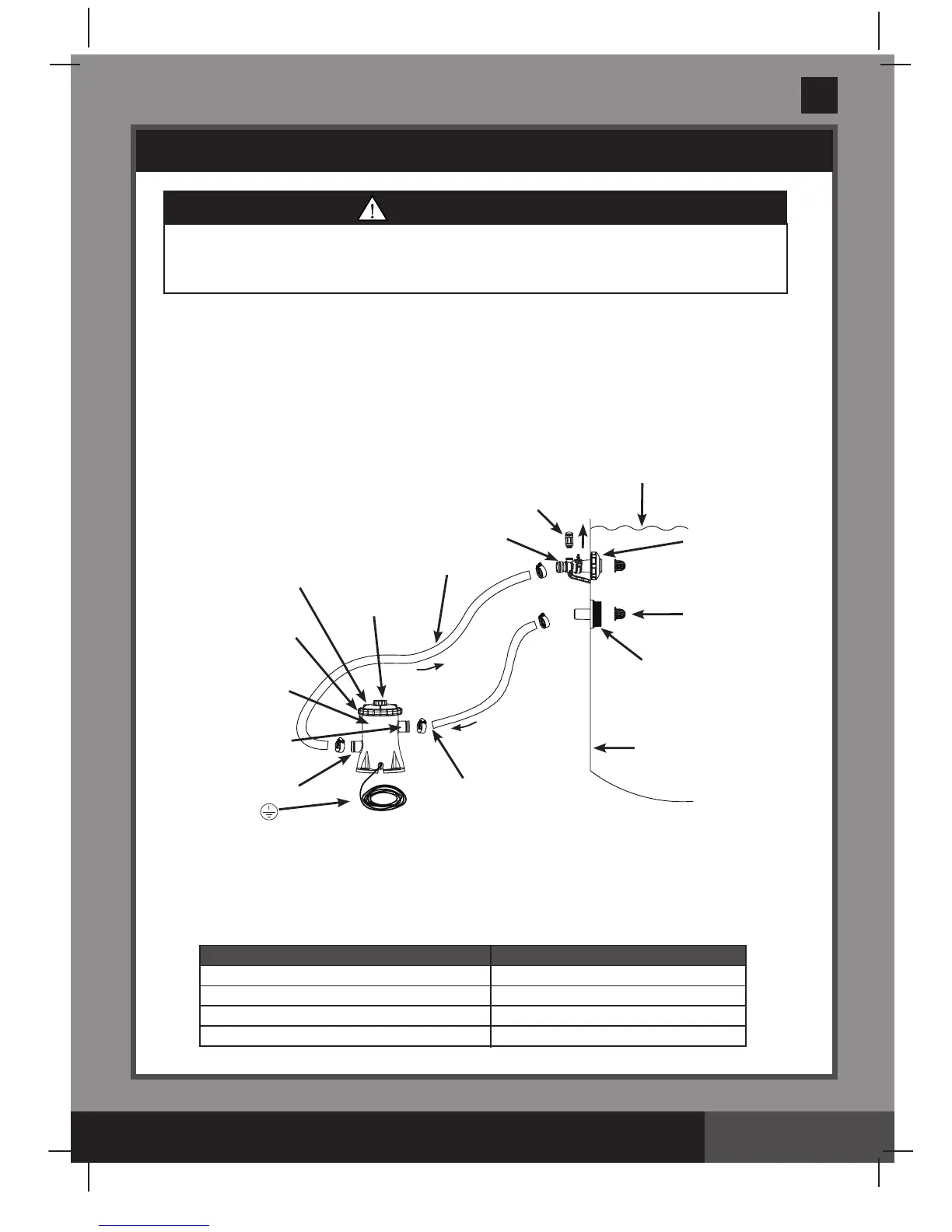

(ILLUSTRATION NOT TO SCALE)
WATER LEVEL
INSIDE OF POOL
STRAINER GRID
(REMOVE)
POOL INLET
JET NOZZLE
(REMOVE)
PLUG
UPPER PUMP
CONNECTION
LOWER PUMP
CONNECTION
FILTER
CARTRIDGE
INSIDE
AIR RELEASE
VALVE
HOSE
W
A
T
E
R
D
I
R
E
C
T
I
O
N
W
A
T
E
R
D
I
R
E
C
T
I
O
N
FILTER HOUSING
COVER
THREADED FILTER
HOUSING COLLAR
POOL INLET
AIR ADAPTOR
AIR JET
VALVE
HOSE
CLAMP
WARNING
Position this product away from the pool, so as to prevent children from
climbing on it and accessing the pool.
The power cord plug to the 220-240 volt electrical power source of the filter pump must be
positioned more than 3.5 m away from the pool walls. Check your local authorities to determine
the appropriate standard and requirements for “electrical installation of swimming pools and basins
equipment”. The following table is for reference only:
International
France
Germany
The Netherlands
Country/Region
Standard Number
IEC 60364-7-702
NF C 15-100-7-702
DIN VDE 0100-702
NEN 1010-702
