SAVE THESE INSTRUCTIONS
(193PO) MODEL SF90110T SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/21/2013
English

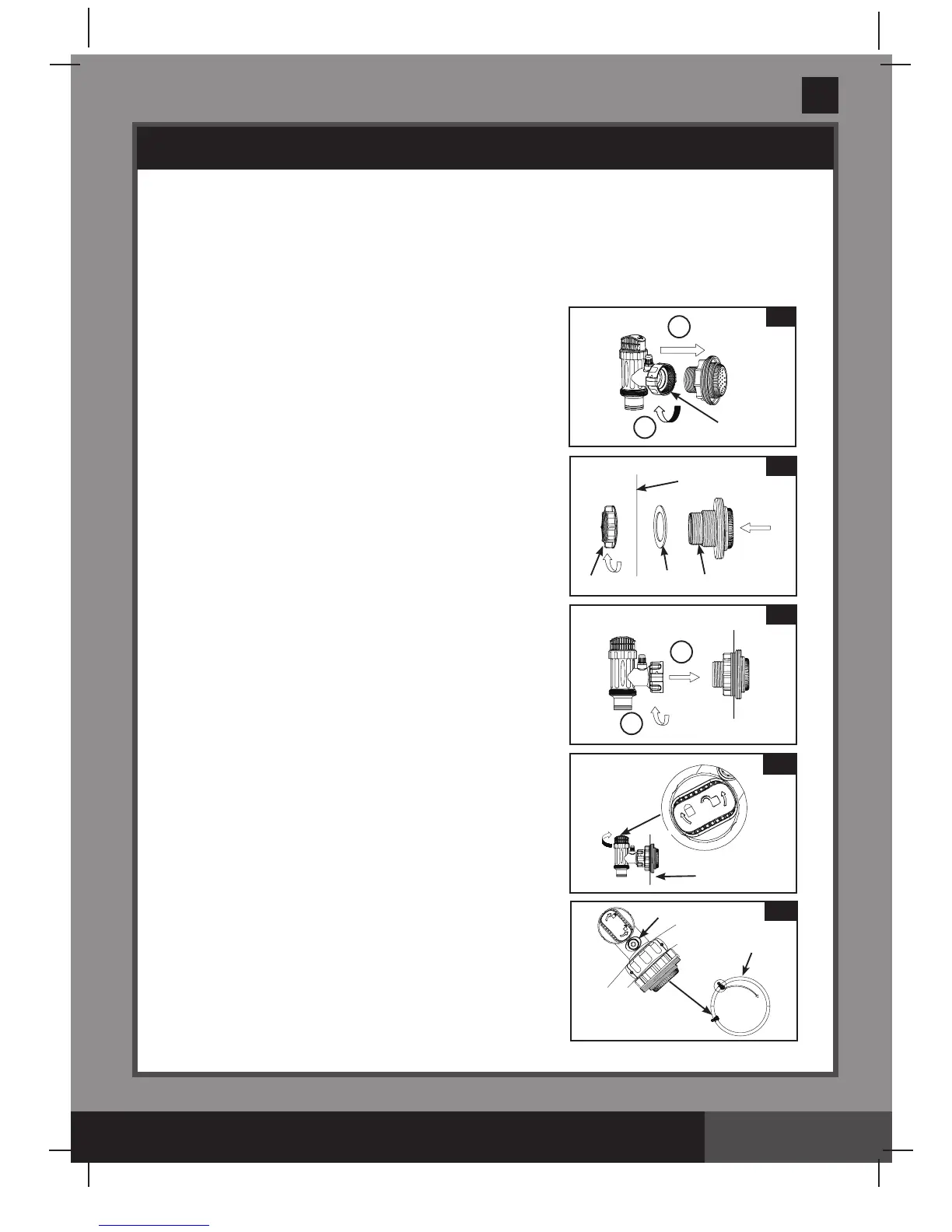

POOL OUTLET - STRAINER & PLUNGER VALVE SETUP (OPTIONAL)
Page 6
The strainer grid prevents large objects from jamming and/or damaging the filter pump. If
your pool has an inflatable top ring, install the strainer, nozzle and plunger valve before
inflating the pool liner top ring. The part numbers here onward refer to the parts depicted
in the Parts List section of this manual. To install, do the following:
1. In a counter-clockwise motion unscrew plunger valve
union from the threaded strainer connector (26) (see
drawing 1). Be careful not to lose the step rubber
washer (23). Place the plunger valve on the ground
in a safe place.
2. In a counter-clockwise motion unscrew the strainer
nut (24) from the threaded connector (26). Leave the
flat washer (25) on the connector (26).
3. Install the strainer and plunger valve at the lower
position of pool outlet (marked "+"). From the inside
of the pool liner insert the connector (26) into one of
the pre-cut holes with the washer remaining on the
connector to be placed against the inside of the liner
wall.
4. Before assembly, lubricate the threads with a
petroleum jelly. With the flat side of the strainer nut
(24) facing the outside wall of the liner in a clockwise
motion screw the strainer nut (24) back onto the
threaded connector (26) (see drawing 2).
5. Finger tighten the strainer nut (24) onto the threaded
connector (26).
6. Grasptheplungervalveassembly.Makesurethe
step washer (23) is in place.
7. In a clockwise motion screw the plunger valve union
back onto the threaded connector (26) (see
drawing 3).
8. In a clockwise motion turn the plunger valve handle
to close position. Ensure the plunger valve is
securely closed. This will prevent water from flowing
out during filling of the pool (see drawing 4.1).
9. NOTE: Nevercoverthevacuumreleasevalve(36)
unless it is damaged or leaking. Replace the vacuum
release valve immediately.
2
25
26
INSIDE
LINER WALL
24
3
1
2
1
23
2
1
4.2
WATER
FLOW
POOL
36
4.1
INSIDE
LINER WALL
