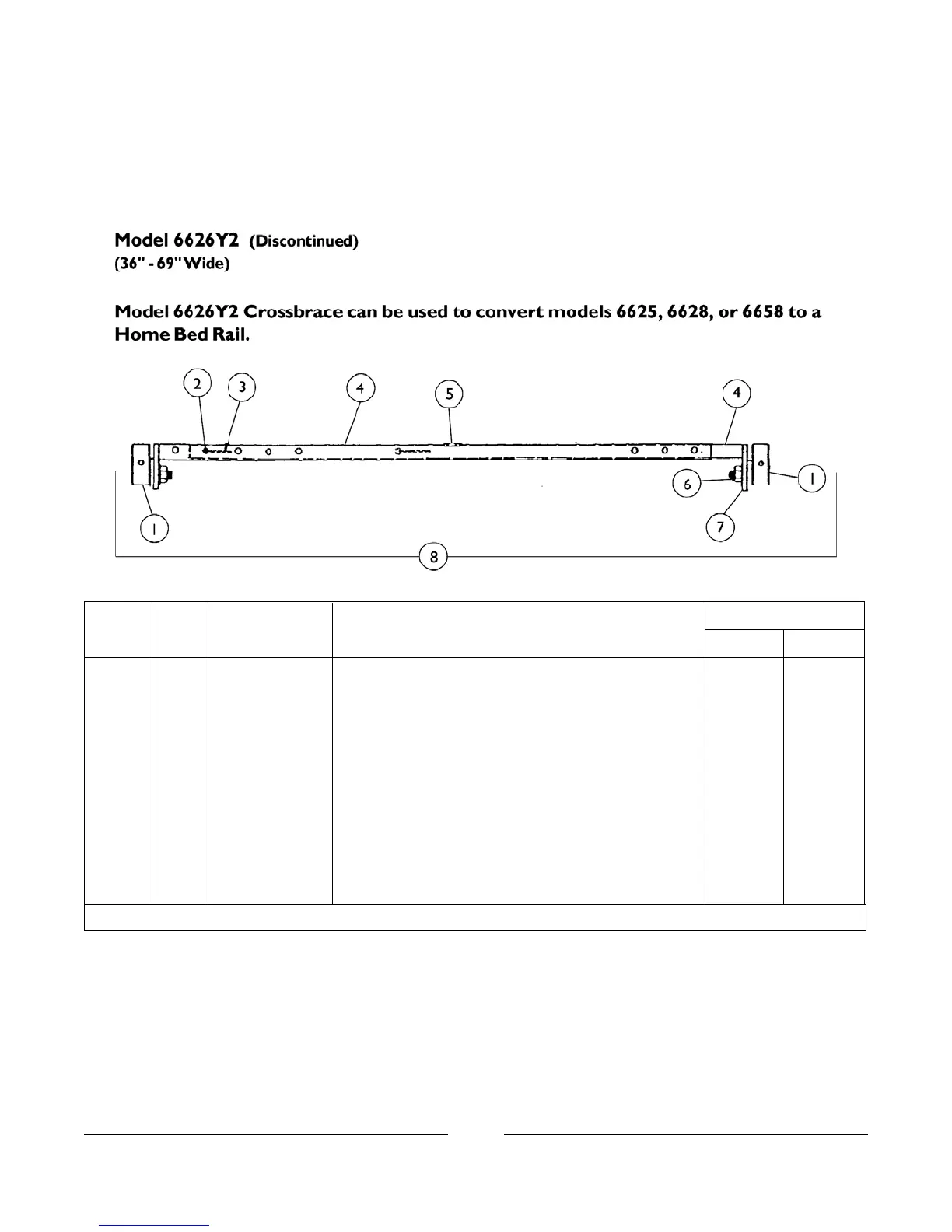

Invacare Bed Rails - Crossbrace Assembly 6626 Y2; Assembly Illustration for 6626 Y2; Parts Identification for 6626 Y2

Invacare Bed Rails
33 pages
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
Item
Number
Part Number
DescriptionNote
Quantity Per
Package Assembly
16356X000 Barrel Assembly, Right Head End / Left Foot End
(Includes: Plunger Knob and Pin)
1 21
16326X000 Barrel Assembly, Left Head End / Right Foot End
(Includes: Plunger Knob and Pin)
1 21
48806X011-NLA NLA - Button, Snap 1 42
40188X005-NLA NLA - Spring, Torsion 1 43
06626X003-NLA NLA - Tube, Channel, Chrome - Outside 1 24 A
06626X004-NLA NLA - Tube, Channel, Chrome - Inside 1 24 A
1011239-NLA NLA - Label, Caution 1 25
60290X002 Locknut (5/16-18) 1 46
16308X000 Washer, Flat (5/16 x 11/16 x 1/16") 1 47
06626X002-NLA NLA - Crossbrace Assembly 1 28 B
A - Channel Tube is No Longer Available. Order Item number 8.
B - Includes Items 1-7.
NOTE:
Crossbrace Assembly
6626Y2
This model was discontinued 10/4/00
11
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 92-048
