SECTION 3—ARMRESTS
1 2
2. Move the side protection upwards or downwards until you reach the desired
height.
3. Tighten the 2 screws of the side protect (0,7–1,2 Nm) with 4 mm Allen key or
Pozidriv screwdriver.
4. Perform the setting on both sides.
Adjusting the Depth and Height of the Control Unit
NOTE: For this procedure, refer to FIGURE 3.2.
1. Loosen lever A and shift the control unit forwards or backwards to the desired depth.
2. Retighten the lever A.
3
. Loosen the two screws
B with a 10 mm spanner of the armrest bracket.
4. Move the control unit holder in the desired depth (+ 20 mm) frontwards.
5. Tighten firmly (8-9 Nm) the 2 screws B with 10 mm spanner.
6. The height of the armrest can be adjusted thanks to screw C. Refer to
Adjusting the armrest height previous paragraph.

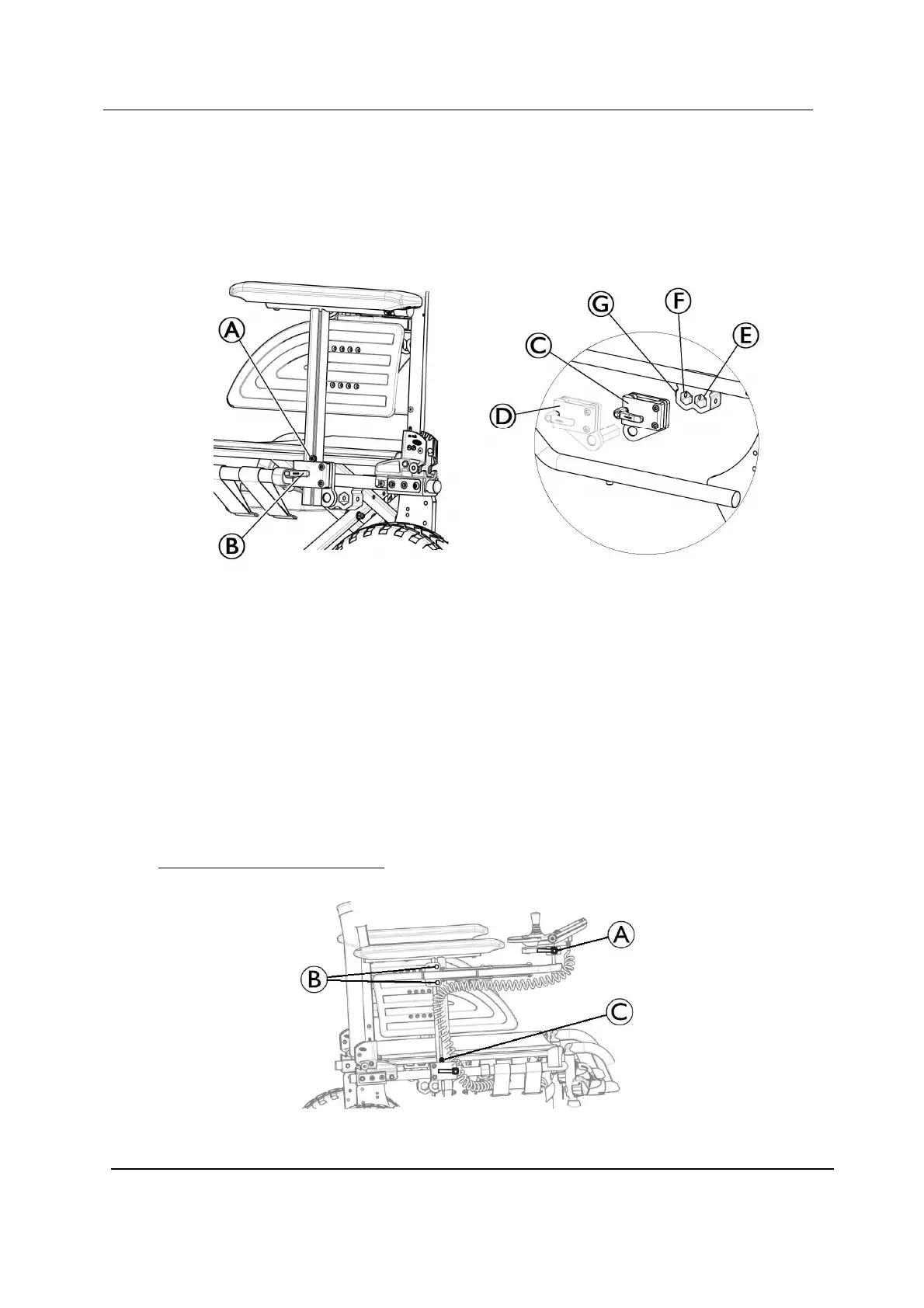

FIGURE 3.1 Removable and Multi-adjustable Armrest
FIGURE 3.2 Adjusting the Depth and Height of the Control Unit
