SECTION 5—REAR WHEELS/FRONT CASTORS
2 8
Removing/Installing/Repositioning the Caster
Assemblies
NOTE: If replacing a front caster note the mounting position of the existing front
caster for installation of the new front caster.
NOTE: If repositioning front casters, refer to Changing Front Seat-to-Floor Height
paragraph to determine the front caster position needed for the required front seat-to-
floor height.
NOTE: Both front casters MUST be the same size and adjusted to the same
height. For this procedure, refer to FIGURE 5.4.
Removing Front Wheel
1. Remove the mounting bolt (5 mm Allen key)
that secure the front wheel to the fork.
2. Remove the wheel from the fork.
Installing Front Wheel
1. Using the mounting bolt (5 mm Allen key),
secure the wheel (5-6 Nm) to the desired
wheel mounting position.
2. Ensure fork stem is perpendicular to the
flat surface.

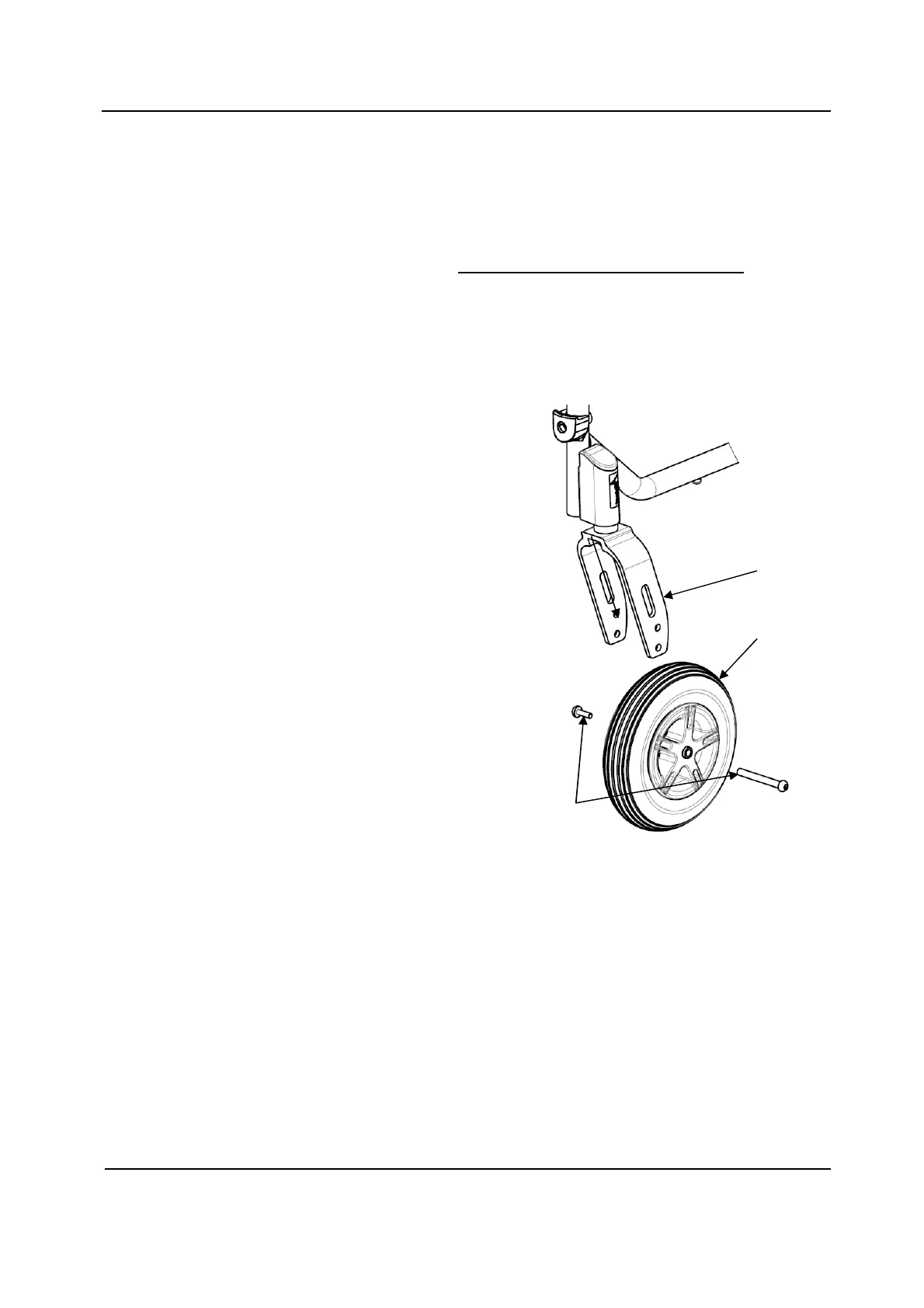

FIGURE 5.4 Removing/Installing/
Repositioning the front wheel
Wheel
Mounting
Bolt
Fork
