SECTION 6—SEAT-TO-FLOOR HEIGHT
29
SECTION 6—SEAT-TO-FLOOR HEIGHT
W A R N I N G
After ANY adjustments, repair or service and before use, make sure all
attaching hardware is tightened securely - otherwise injury or damage
may occur.
Measuring Seat-to-Floor Height
NOTE: For this procedure, refer to FIGURE 6.1.
NOTE: All measurements are in millimetres. The front and rear seat-to-floor heights are
approximate to 6.5 mm due to tyre wear and air pressure.
Measuring Front Seat-to-Floor Height
Front Seat-to-Floor Height: Measure the distance between the front of the seat upholstery
and the ground/floor.
Measuring Rear Seat-to-Floor Height
NOTE: The rear seat-to-floor heights are based on pneumatic tyres and pneumatic tyres
with flat free inserts
Rear Seat-to-Floor Height: Measure distance between the rear of the seat upholstery and
the ground/floor.

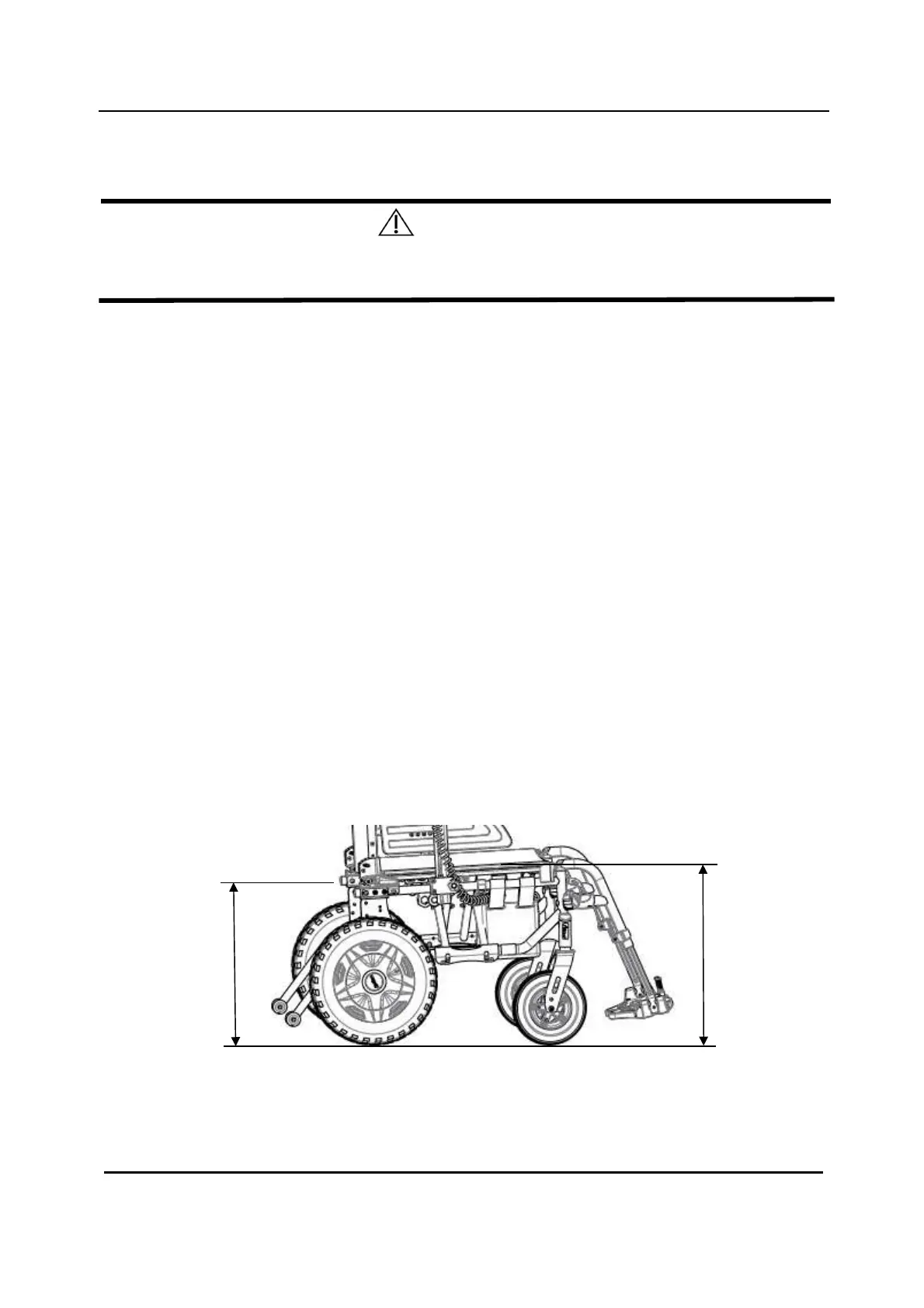

FIGURE 6.1 Seat-to-Floor Height
Front
Seat-to-Floor
Height
Rear
Seat-to-Floor
Height
