SECTION 2—FRONT HANGERS
8
Replacing Heel Strap
NOTE: For this procedure, refer to FIGURE 2.2.
1. Remove the locking screw that secure the footrest tube to the footrest support.
2. Remove the lower footrest assembly.
3. Remove the mounting screw, strap pin
that secure the heel strap to the footplate.
4. Slide heel strap over footrest tube.
NOTE: When securing the heel strap to the
footrest assembly, tighten the mounting
screw and strap pin until they are secure.
5. Using the mounting screw, strap pin,
secure the heel strap to the footplate.
6. Using the locking screw (M6), secure the
footrest tube to the footrest support.
Locking Screw (M6)
Strap Pin
Mounting Screw
Heel Strap

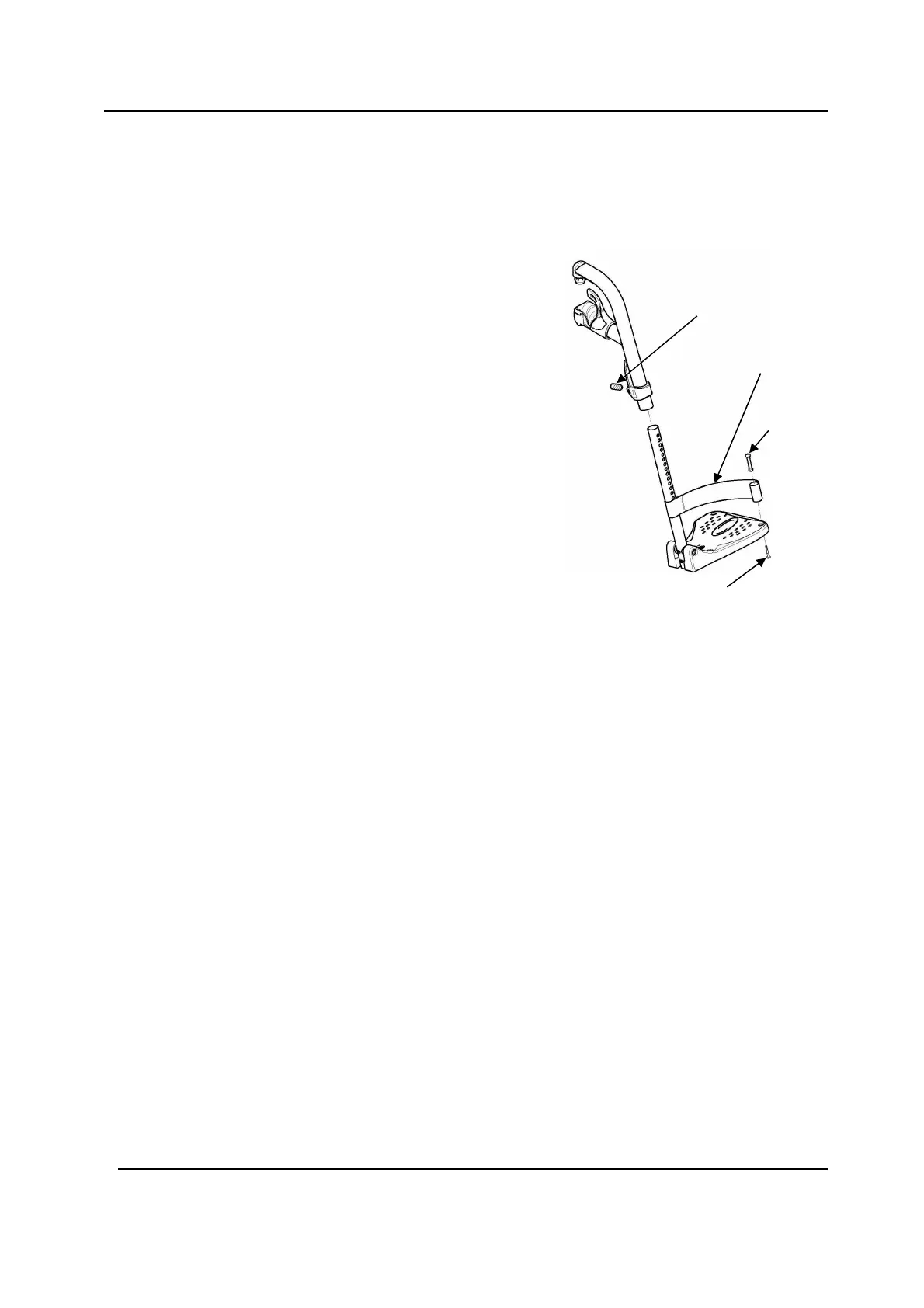

FIGURE 2.2 Replacing Heel Strap
