SECTION 4—SEAT/BACK
1 7
4. Slide each section (anchor loop/adjuster strap) of the new adjustable back-upholstery
with the grommet hole facing the rear of the wheelchair.
5. Secure new adjustable back-upholstery to the back-canes with the two mounting
screws and washers.
W A R N I N G
Ensure that the wheelchair is fully opened, the back brace is fitted, and the seat
rails properly located. The fastening strips MUST be securely fastened before
applying the back-upholstery cover. The Contour (adjustable) back should be
checked whenever entering the wheelchair to ensure that the fastening strips are
securely fastened.
1. Slip adjuster strips B through corresponding anchor loops and adjust the
back-upholstery. Secure with the fastening strips.
2. Secure the new back-upholstery cover (fastening strap) to the back of the new
adjustable back-upholstery (fastening strap).
3. Flip the new back-upholstery cover over the new adjustable back-upholstery and
secure the fastening strips to the front of the new adjustable back-upholstery.
4. Reinstall the backrest cover A as shown for high backrest (height = 510 mm)
5. Reinstall the backrest cover A as shown for low backrest (height = 430 mm).
Fastening Straps

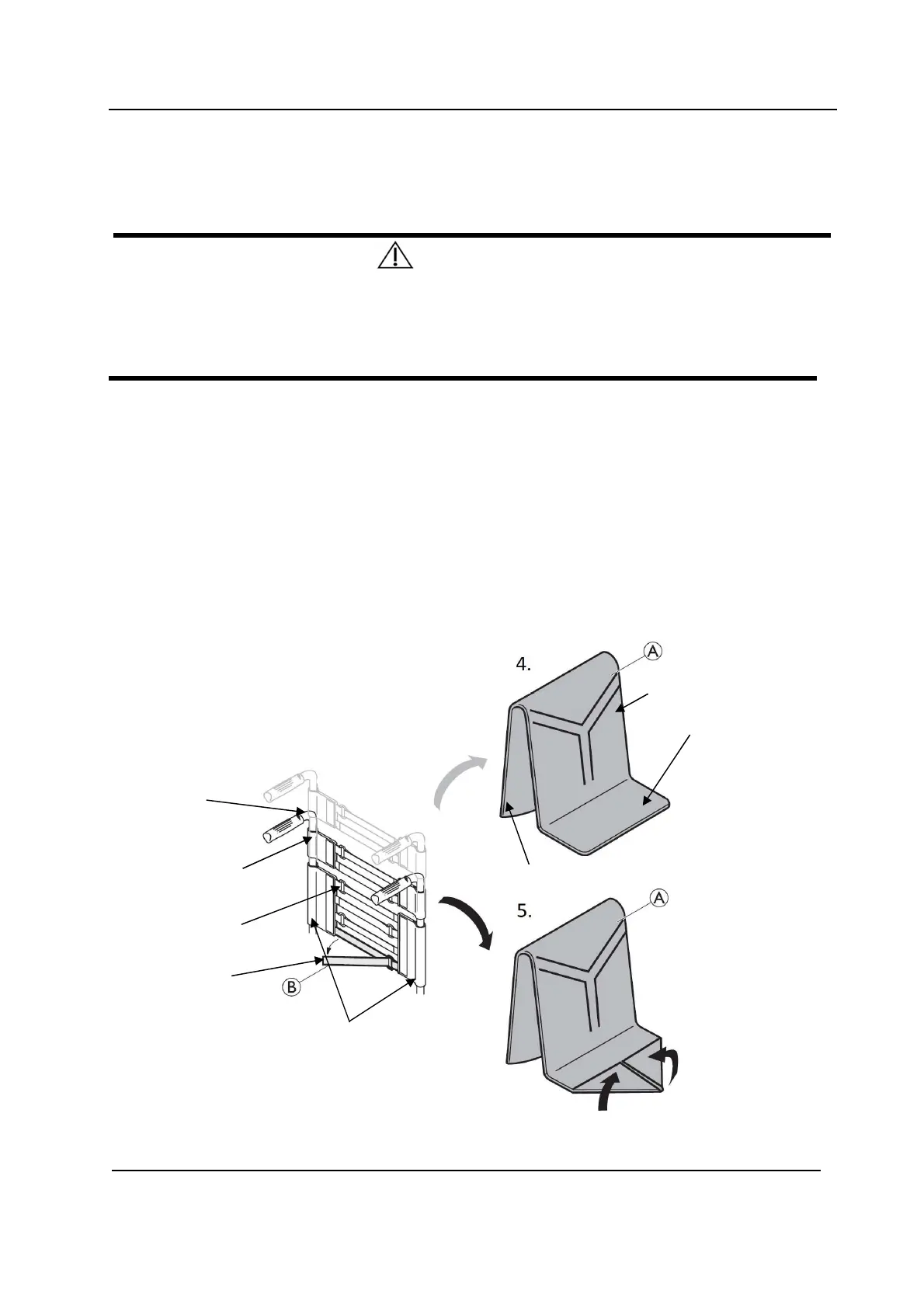

FIGURE 4.4 Installing/Replacing Contour (adjustable) Back Upholstery
Fastening Straps
Mounting Screw
Back-Cane
Back-upholstery
Anchor Loop
Back-upholstery Cover
Back-upholstery
Adjuster Strap
Adjustable Back-upholstery
To Next Page
