SECTION 4—SEAT/BACK
2 0
Removing/Installing different type of Backrests
Recliner backrest (Mechanical and Gas strut versions)
NOTE: For this procedure, refer to FIGURE 4.8.
To Install the Recliner backrest; reverse this procedure from STEP 1 to 3.
1. Remove the back-cane bracket. Refer to Removing Back-cane Bracket paragraph.
2. Pull up on the seat upholstery.
3. Remove the two mounting screws and locknuts that secure the back-cane bracket
to the wheelchair frame.
4. Install the new set including the appropriate backrest upholstery
NOTE: Both back-cane brackets should be set to the same adjustment holes.

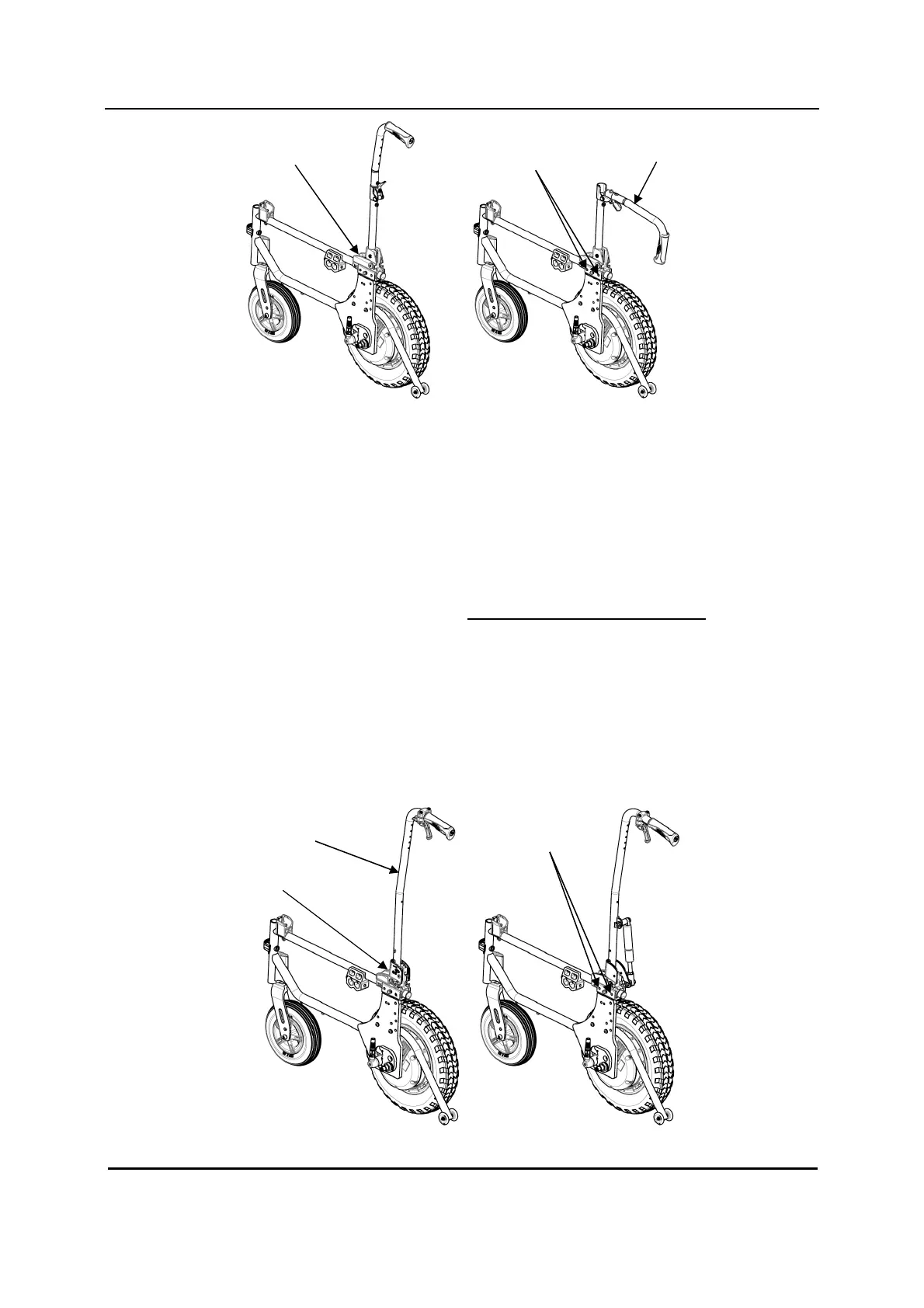

FIGURE 4.
8
Recliner Backrests
Back cane
Back-cane
Bracket
Mounting
Screw
s
FIGURE 4.7 Fixed/Folding Backrests
Mounting
Screw
s
Back-cane
Bracket
Backrest Cane
