INSTALLING/REMOVING MECHANICAL ELEVATING/GENIUS
LEGRESTS (FIGURE 1)
Installing.
1. Turn elevating legrest to side (open footplate is perpendicular to wheelchair) and
position the mounting pin on the legrest mounting holes on the seat frame.
2. Insert the mounting pin into the mounting hole.
NOTE: Make sure the legrest sits flush on the seat frame.
3. Rotate the elevating legrest toward the inside of the wheelchair until it locks in
place.
NOTE: The footplate will be on the inside of the wheelchair when locked in place.
4. Lift the elevating legrest UP and position the mechanical elevating legrest push rod
around the pin on the legrest as shown in FIGURE 1.
5. Press DOWN on mechanical elevating legrest push rod until there is an audible
"click".
6. Repeat STEPS 1-5 for the opposite elevating legrest.
7. If necessary, adjust elevating legrests. Refer to one of the following:
A. ADJUSTING MECHANICAL ELEVATING LEGRESTS in this section of the
manual.
B. ADJUSTING GENIUS LEGRESTS in this section of the manual.
Removing.
1. Lift UP on the mechanical elevating legrest push rod and remove from the pin on the
legrest as shown in FIGURE 1.
2. Push elevating legrest release handle toward the opposite side of the wheelchair and
swing legrest to the outside of the wheelchair.
3. Lift UP on elevating legrest and remove from wheelchair.
4. Repeat STEPS 1-3 for opposite side of wheelchair.
ADJUSTING MECHANICAL ELEVATING LEGRESTS

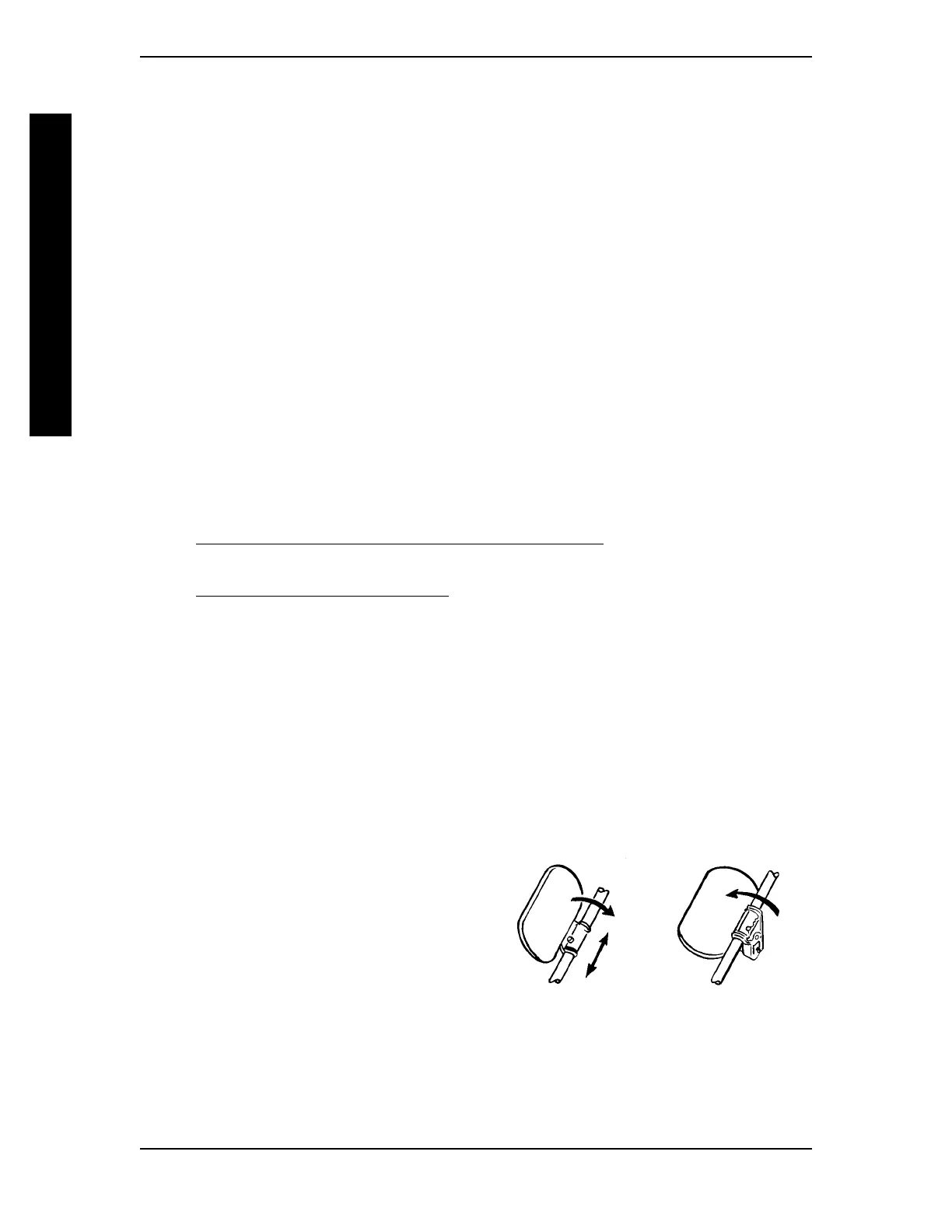

Calfpads (FIGURE 2).
1. Turn the calfpad toward the outside of
the wheelchair.
2. Slide calfpad up or down until desired
position is obtained.
3. Turn the calfpad toward the inside of
the wheelchair.
FIGURE 2 - ADJUSTING
MECHANICAL ELEVATING
LEGRESTS - CALFPADS
Secure Calfpad
Adjust Calfpad
