Invacare MK5 EX - VENTILATOR TRAY ACCESSORY; USING THE OPTIONAL VENTILATOR TRAY

Tilt/Recline Seating Systems® 24 Part No. 1114822
VENTILATOR TRAYSECTION 6
Rear
Portion
of Buckle
Strap
DETAIL “A”

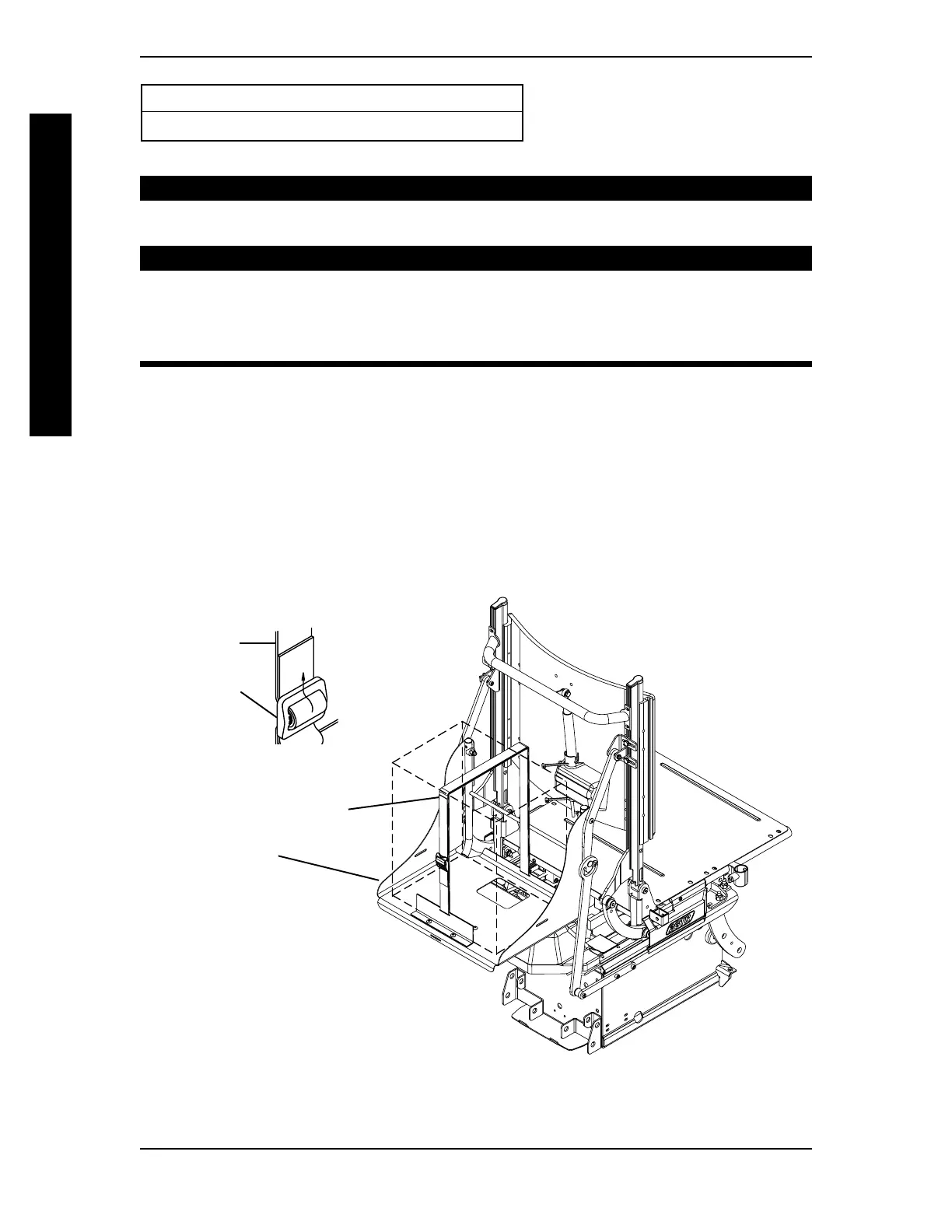

FIGURE 1 - USING THE OPTIONAL VENTILATOR TRAY
USING THE OPTIONAL VENTILATOR TRAY (FIGURE 1)
WARNING
Maximum weight capacity for the vent tray is 40 lbs. DO NOT exceed weight
capacity for vent tray - otherwise, injury or damage may occur.
CAUTION
This ventilator tray was designed to hold a ventilator that is approxi-
mately 13-inches long, 14-1/2-inches wide, and 14-inches high. Use of
ventilators larger than the above specifications may result in damage to
the ventilator.
1. Position straps to the outside of the ventilator tray.
2. Position the ventilator (not shown) on the ventilator tray.
3. Secure strap around the ventilator and clip together.
4. Securely tighten the straps around the ventilator by pulling the ends of the strap
through the rear portion of each buckle. Refer to DETAIL "A" in FIGURE 1.
This Section Includes the Following:
Using the Optional Ventilator Tray
Vent Tray
VENTILATOR TRAY
Straps
