Part No. 1114822 39 Tilt/Recline Seating Systems®
ADJUSTING HEADREST DEPTH/DIRECTION
1. Loosen, but do not remove, the three (3) socket screws that secure the offset
fixture to the slide tube.
2. If necessary, reposition the headrest to the desired depth by sliding the headrest
towards the front of the wheelchair or towards the rear of the wheelchair.
3. If necessary, reposition the headrest to the desired position (headrest will move in
any direction). Refer to DETAIL "A" in FIGURE 1.
4. While holding the headrest in the desired position, securely tighten the three (3)
socket screws.
5. If necessary, adjust the height of the headrest . Refer to ADJUSTING HEADREST
HEIGHT in this section of the manual.

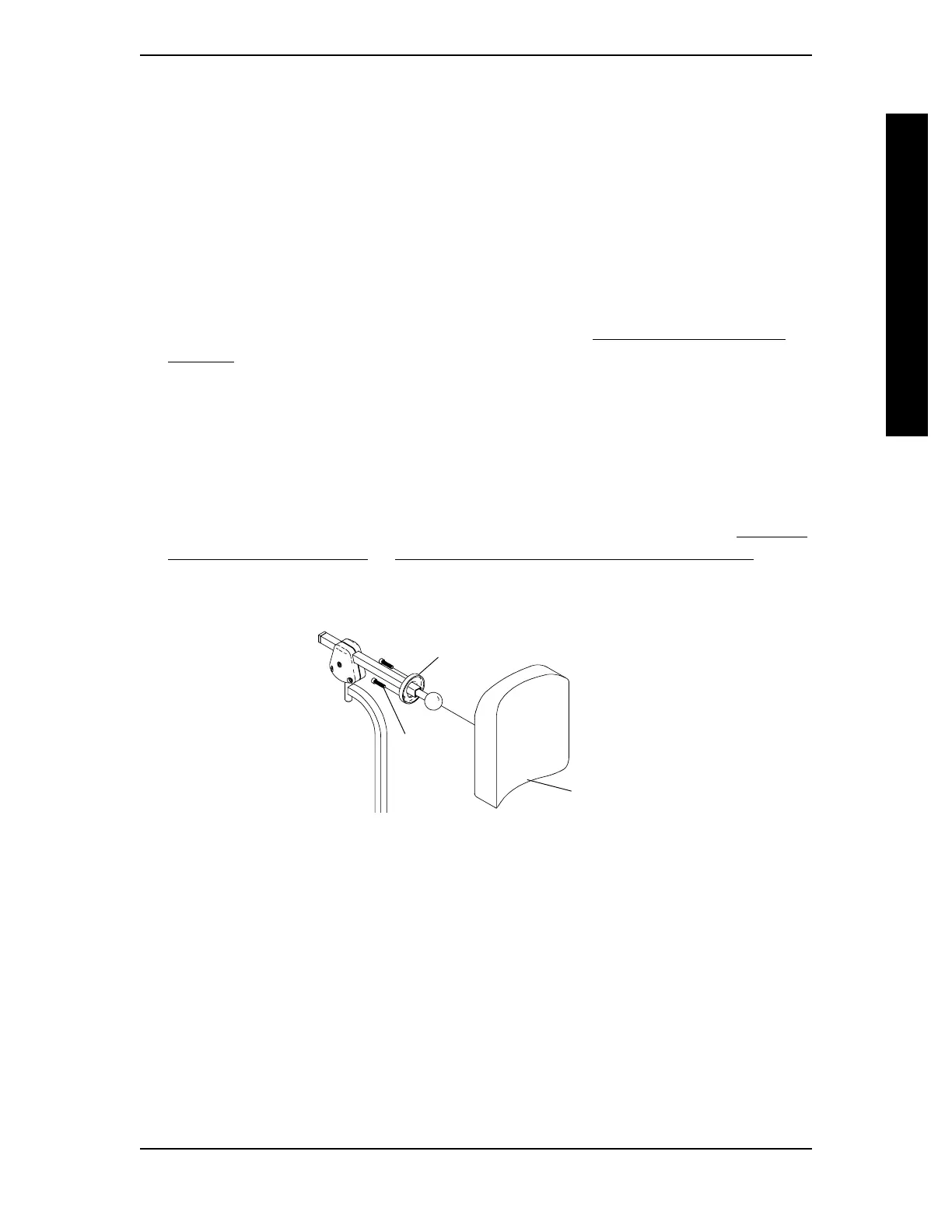

REPLACING HEADREST (FIGURE 2)
1. Remove the three (3) socket screws that secure the headrest to the headrest
mounting bracket.
2. Position the new headrest on the headrest mounting bracket and secure with the
existing three (3) socket screws.
3. If necessary, adjust the height, depth or direction of the headrest. Refer to
ADJUST-
ING HEADREST HEIGHT or ADJUSTING HEADREST DEPTH/DIRECTION in this
section of the manual.
Socket
Screws
Headrest Mounting Bracket
Headrest
NOTE: One (1) style of headrest shown for clarity. Both
styles of headrest attach the same way.
FIGURE 2 - REPLACING HEADREST
SECTION 10HEADREST
HEADREST
