Tilt/Recline Seating Systems® 30 Part No. 1114822
Calfpad Height (FIGURE 5).
1. Turn the calfpad towards the outside of the wheelchair.
2. Slide calfpad up or down until desired position is obtained.
3. Turn the calfpad towards the inside of the wheelchair.
Calfpad Depth (FIGURE 5).
1. Remove the hex bolt and locknut that secure the calfpad and spacer to the adjust-
ment bracket.
2. Move the legrest to one (1) of three (3) positions.
3. Reinstall the hex bolt through the spacer and calfpad.
NOTE: Make sure hex bolt sits flush adjustment bracket channel.
4. Reinstall locknut onto the hex bolt and tighten securely.
Legrest Height (FIGURE 6).
1. Remove the button screw that secures the adjustment link and two (2) washers to
the legrest support.
2. Move adjustment link to one (1) of three (3) positions.
3. Line up the two (2) washers and adjustment link with the mounting hole in the
legrest support.
4. Install the button screw and tighten securely.
RIGGINGSSECTION 7
FIGURE 6 - ADJUSTING GENIUS LEGRESTS -
LEGREST HEIGHT DEPTH
Button
Screw
Adjustment
Link
Washer
Legrest
Support
Washer
RIGGINGS

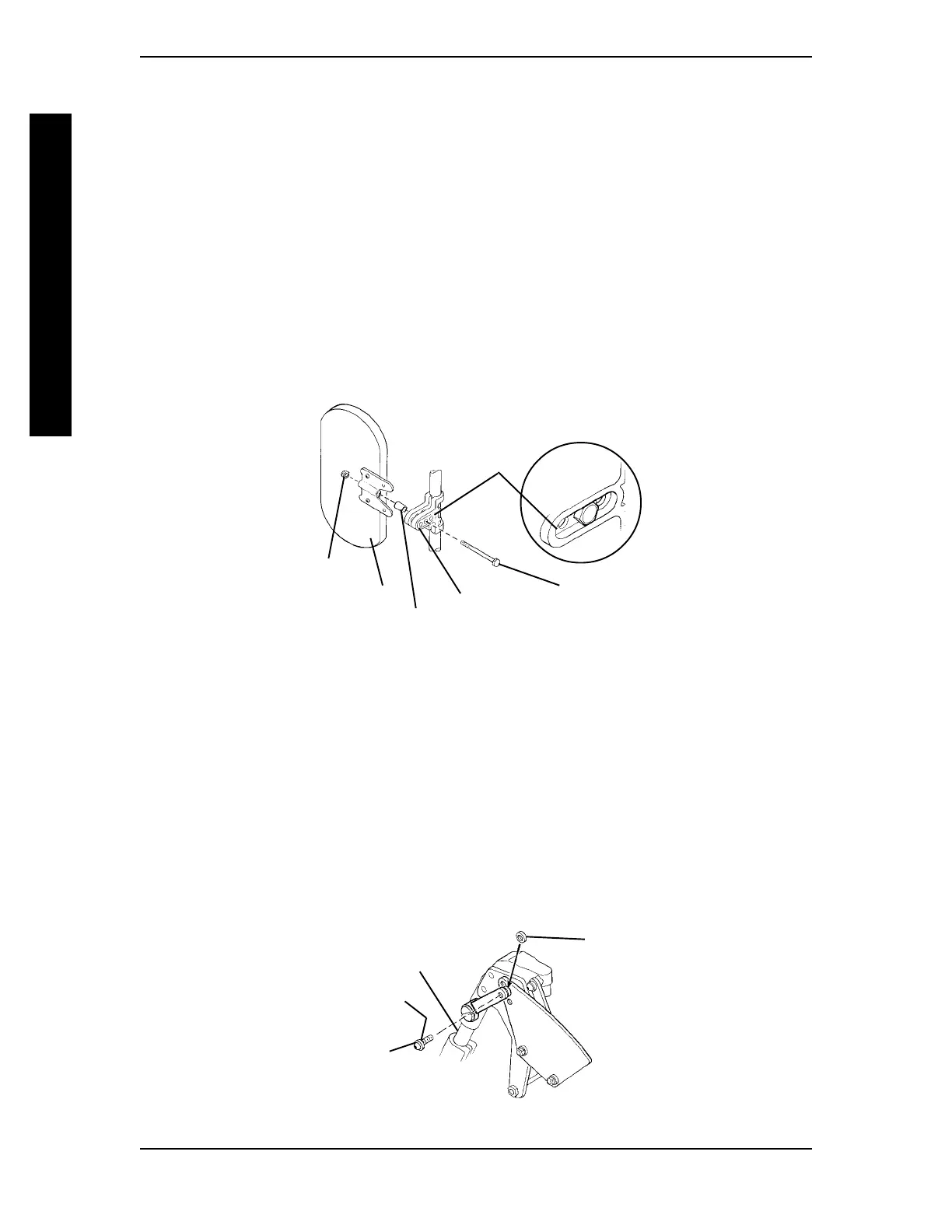

FIGURE 5 - ADJUSTING GENIUS LEGRESTS - CALFPAD
HEIGHT/DEPTH
Hex Bolt
Calfpad
Spacer
Locknut
Adjustment
Bracket
Adjustment
Bracket
Channel
