Tilt/Recline Seating Systems® 34 Part No. 1114822
ADJUSTING THE CALF PAD
Adjusting the Calf Pad Width (FIGURE 11).
1. Remove the two (2) button head screws from the calf pad and calf pad bracket.
2. Reposition calf pad to calf pad bracket to desired mounting position.
3. Align button head screws to mounting holes on calf pad and calf pad bracket.
4. Install button head screws into calf pad bracket and calf pad. Securely tighten.
5. Repeat STEPS 1-4 for opposite side, if necessary.
RIGGINGSSECTION 8

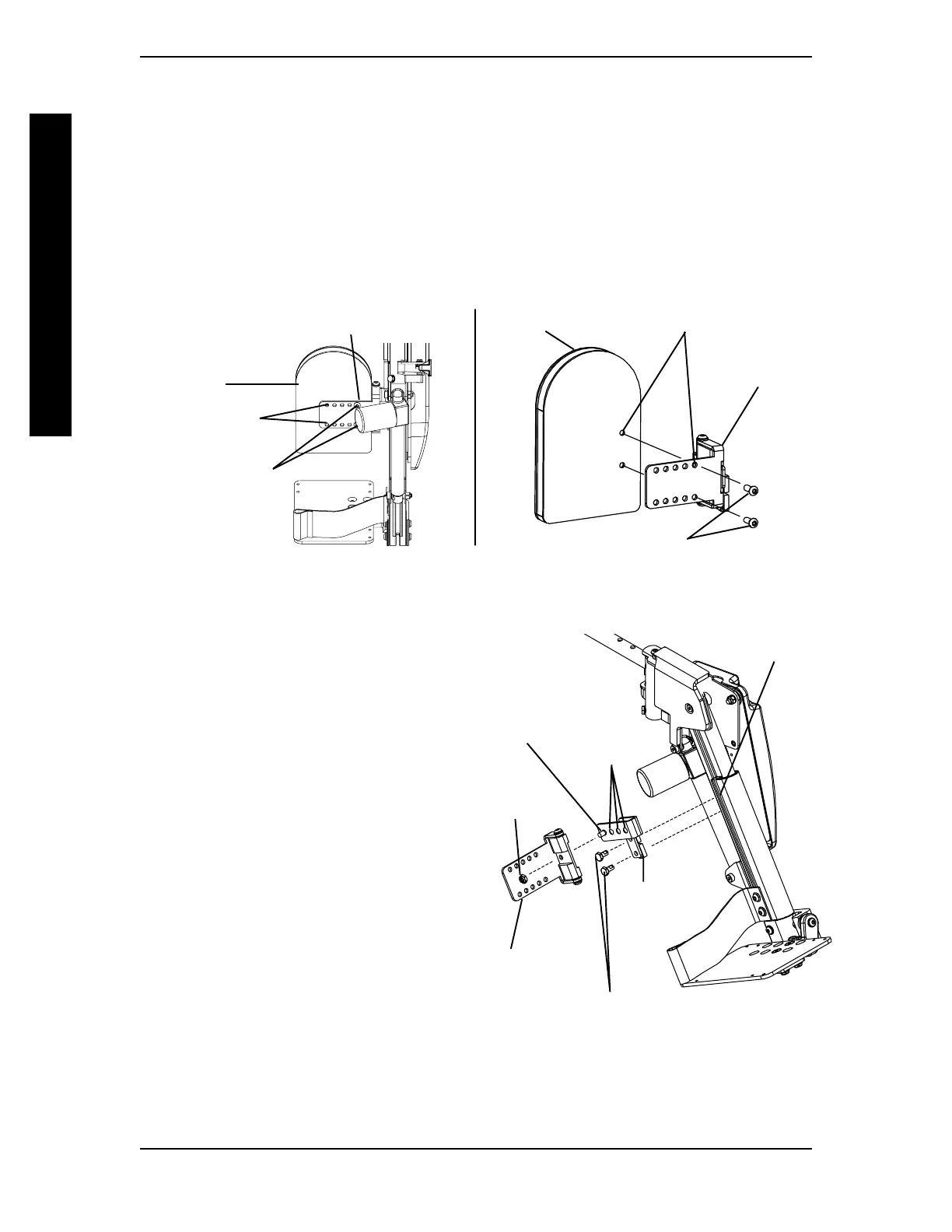

FIGURE 11 - ADJUSTING THE CALF PAD WIDTH
Button Head
Screws
Calf Pad Bracket
Mounting
Holes
Calf Pad
Button Head Screws
Calf Pad
Bracket
Mounting Holes
Calf Pad
BACK VIEW
OF LEGREST
Adjusting the Calf Pad Depth (FIGURE 12).
1. Loosen, but do not remove, depth
adjustment bracket mounting screws
and slide calf pad assembly up and out
of the mounting channel.
2. Remove the flat head socket screw, and
locking hex nut that secure the calf
bracket to the depth adjustment bracket.
3. Reposition the calf bracket on the depth
adjustment bracket to desired position.
4. Install the flat head socket screw
through the calf bracket, depth adjust-
ment bracket and locking hex nut.
5. Tighten locking hex nut to screw until
snug. Do not overtighten nut or calf
pad will not pivot properly.
6. Align the two (2) T-nuts on depth
adjustment bracket assembly with
channel on legrest. Slide calf pad
assembly to desired height. Tighten the
two (2) hex mounting screws securely.
7. Repeat STEPS 1-6 for opposite side.
FIGURE 12 - ADJUSTING THE
CALF PAD DEPTH
Calf
Bracket
Locking
Hex Nut
Depth
Adjustment
Bracket
Depth
Adjustment
Holes
NOTE: Calf pad not shown for clarification
purposes only.
Depth Adjustment
Bracket Hex Head Screws
Flat
Head
Mounting
Screw
Mounting
Channel
RIGGINGS
