Service Manual

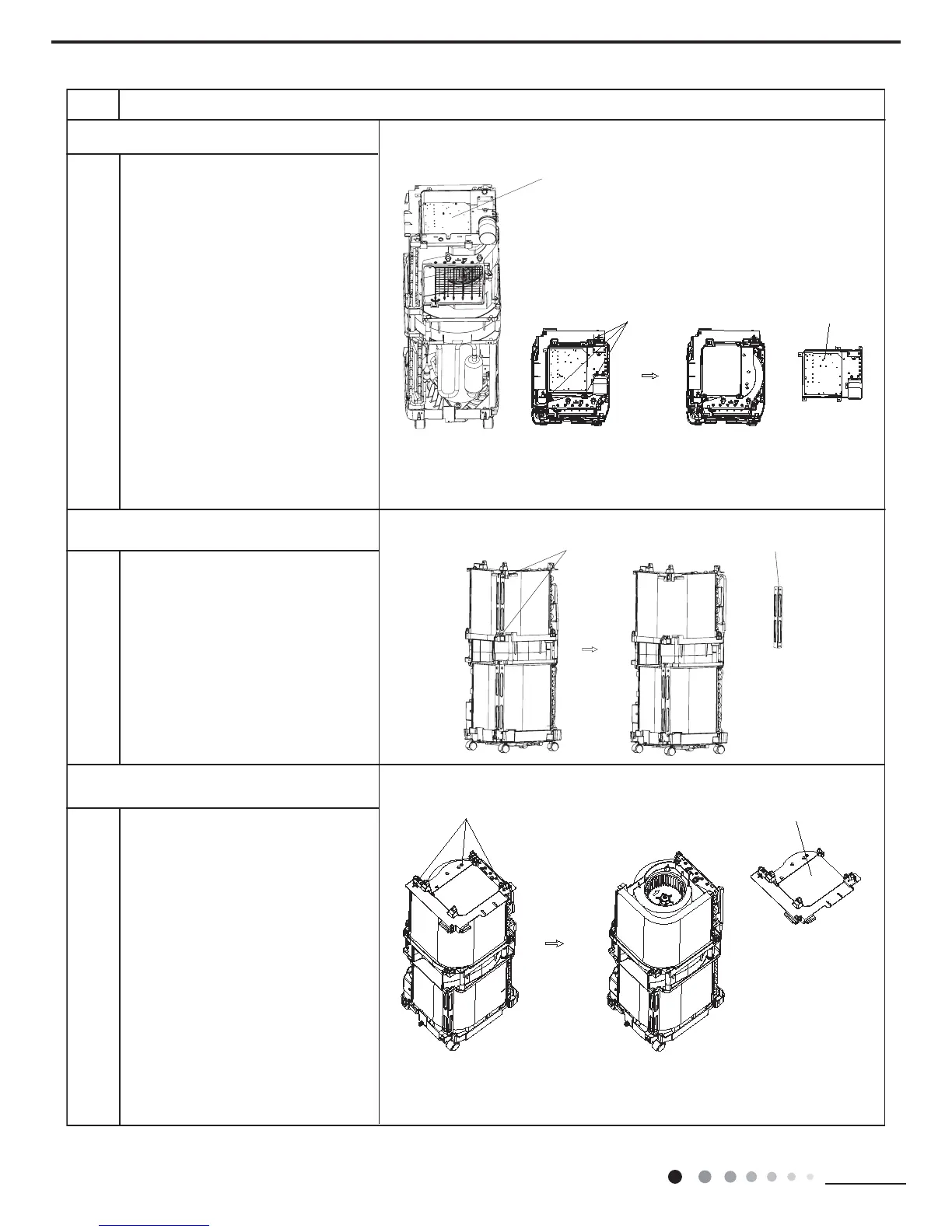

7.Remove electric box assembly
Pull out wiring of electric box, then
unscrew 3 screws of electric box to
remove electric box assembly.
8.Remove facing bar
Unscrew 2 screws fixing facing bar to
remove it.
9.Remove volute cover
Unscrew 3 screws fixing volute cover to
remove it.
Step Procedure
electric box
assembly
screws
screws
screws volute cover
facing bar
electric box wiring
