Service Manual

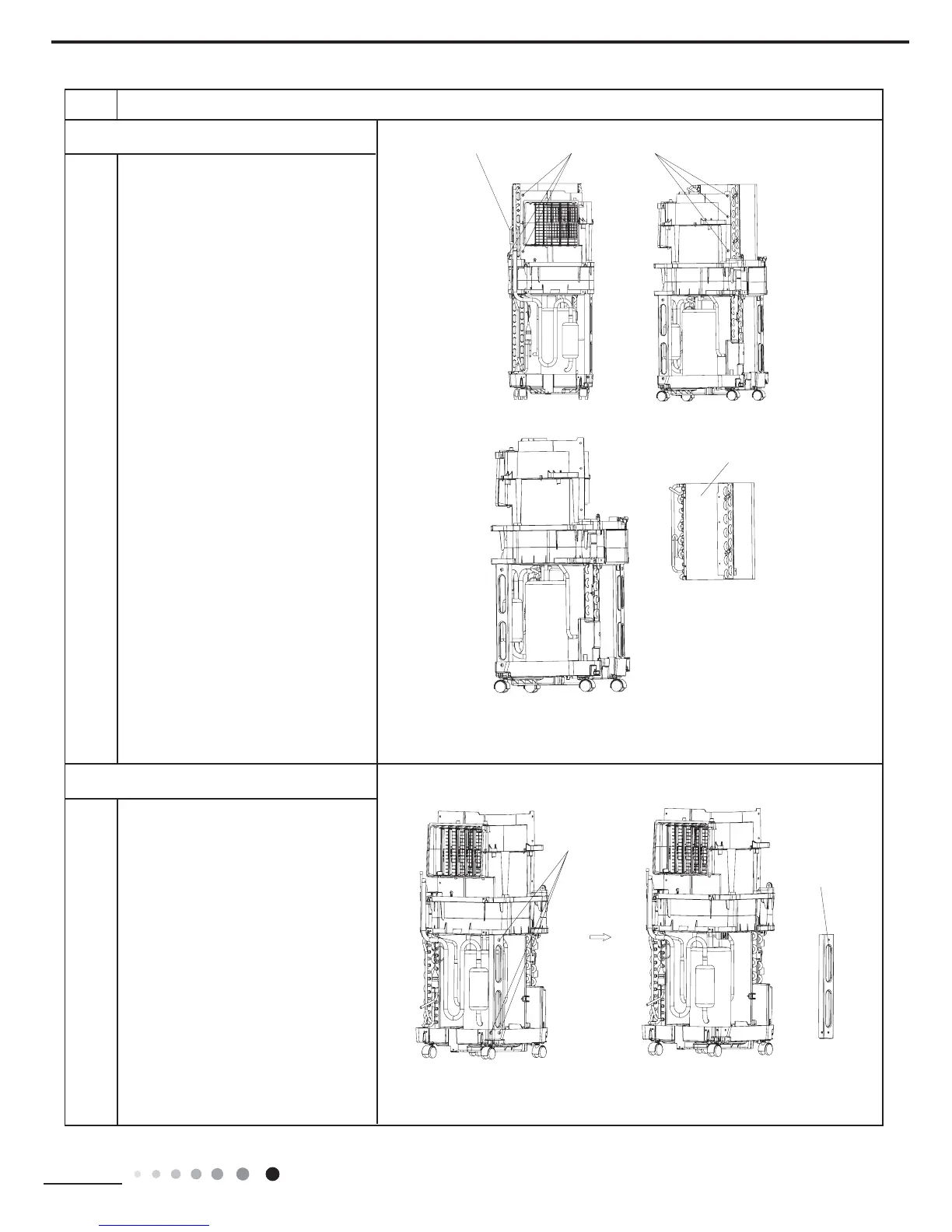

10.Remove evaporator assembly
Unsolder the spot weld, then unscrew 5
screws fixing evaporator to remove it.
(note: The refrigerant must be discharg-
ed before unsoldering.)
11.Remove facing bar 2
Unscrew 3 screws fixing facing bar to
remove the facing bar 2.
Step Procedure
evaporator assembly
screws
spot weld
screws
screws
facing bar 2
39
Maintenance
