SERVICE MANUAL ODP-2/HVAC FRAME SIZE 3
Page 6 of 10

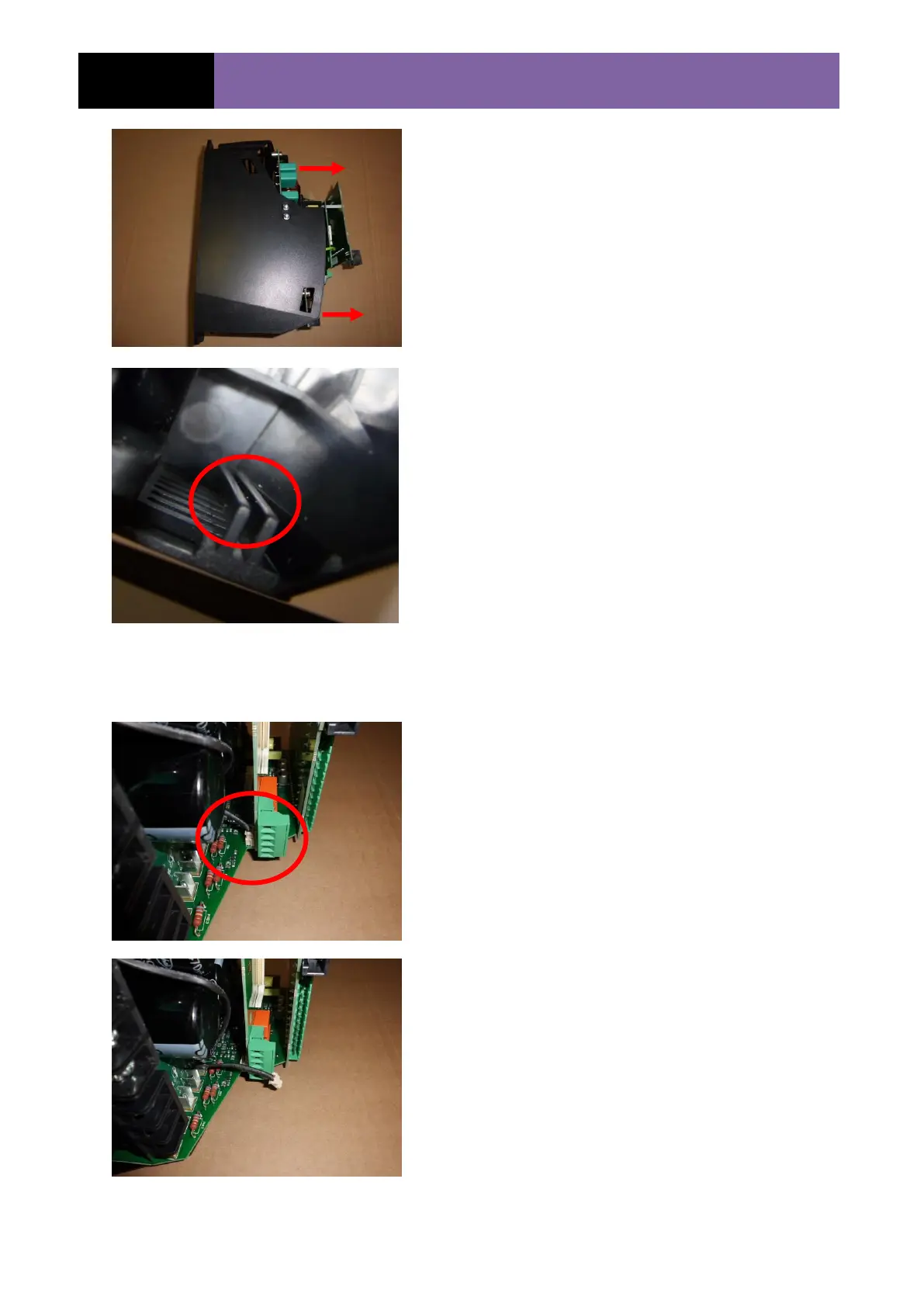

Fan disconnection
Start to remove the drive in the
direction indicated but only a
small amount to allow access to
the fan lead on the right hand
side of the drive
Disconnect fan using long nose
pliers
Ensure antistatic precautions are
taken
PCB can now be removed from
the plastic base
During reassembly of the drive,
ensure PCB fits into the plastics
positioning groves only
