SERVICE MANUAL ODP-2/HVAC FRAME SIZE 3
Page 9 of 10

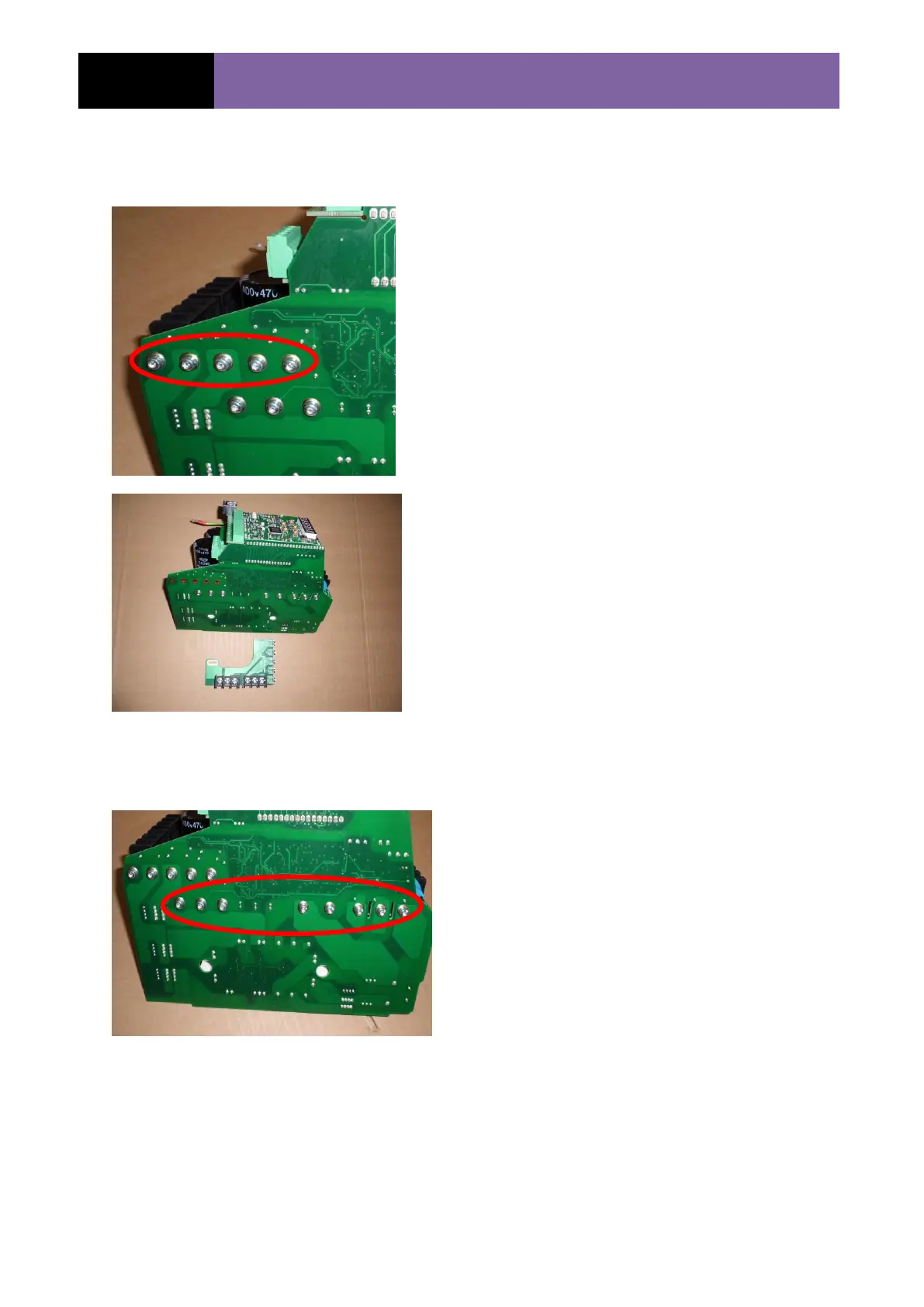

Output terminal connector removal
Filter PCB removal
The output terminal connector
can removed by removing the
five screws highlighted using a
T15 torx screwdriver
(Torque setting 1Nm)
The output terminal connector
removed
The filter PCB can be removed
by removing the eight screws
highlighted using a T15 torx
screwdriver
(Torque setting 1Nm)
