PREPARING FOR INSTALLATION
8
Pulsar extractor fan | Installation and operation instructions
3 Preparing for installation
3.1 Mounting conditions
Electrical protection areas according to VDE 0100
DANGER
Inltration of water into the Pulsar extractor fan
or its power source.
Electric shock and overheating through short circuit
(230V, 50 Hz)!
• Install the Pulsar outside the protection area 0.
• Only install the Pulsar in areas of protection
zone 1 where direct contact with splash water is
not possible over a long period of time and/or
the unit is not exposed to direct jets of water.
• Fit lightswitch/ switch/ push-button outside the
protected area 0 to 2.
Bereich 2
Bereich 1
Bereich 0
2250
600
Positioning of the Pulsar
• Install the Pulsar extractor fan in the room´s air ow to
ensure optimum moisture removal and reliable readings
from the humidity sensor.
• Do not place the ventilation device over heating units,
room thermostats and/or delicated furniture.
• Ensure there is su󰀩cient air supply in the room, for
example by a large gap under the door

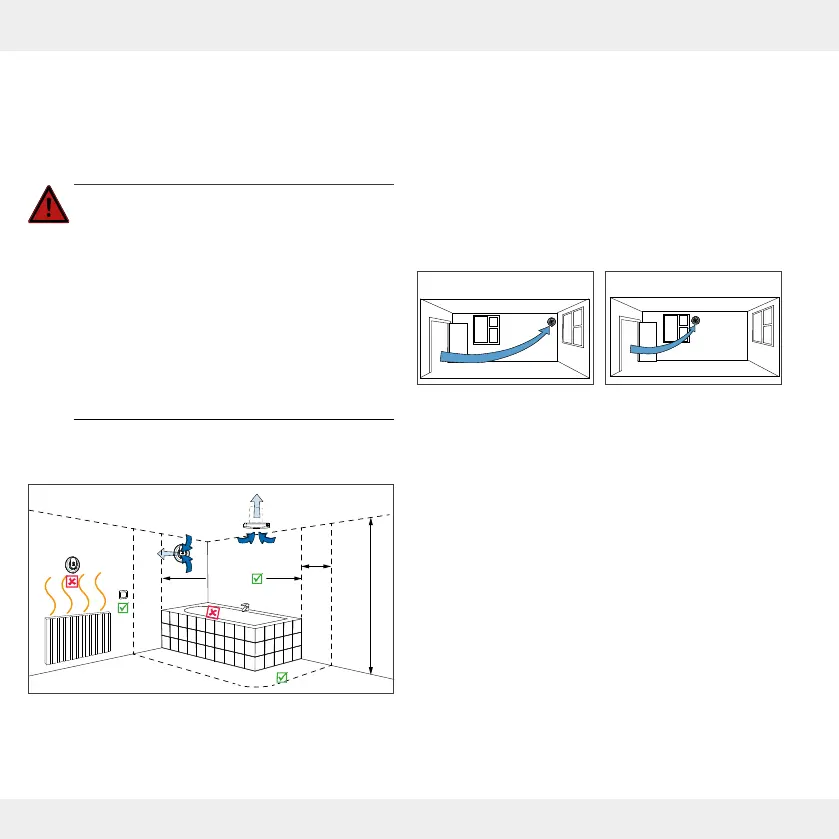

Figure 2: Overview of electrical safe areas in the bathroom
Cable cross-sections
• Supply line, AC 230 V, 50 Hz:
Wire cross-section 1,5 mm²
• Operating voltage to the extractor fan, DC 12 V,
Wire cross-section max. 1,5 mm²
• Capacity of connection terminals on the exhaust air unit:
max. 1,5 mm²
Figure 3: Proper/improper positioning


