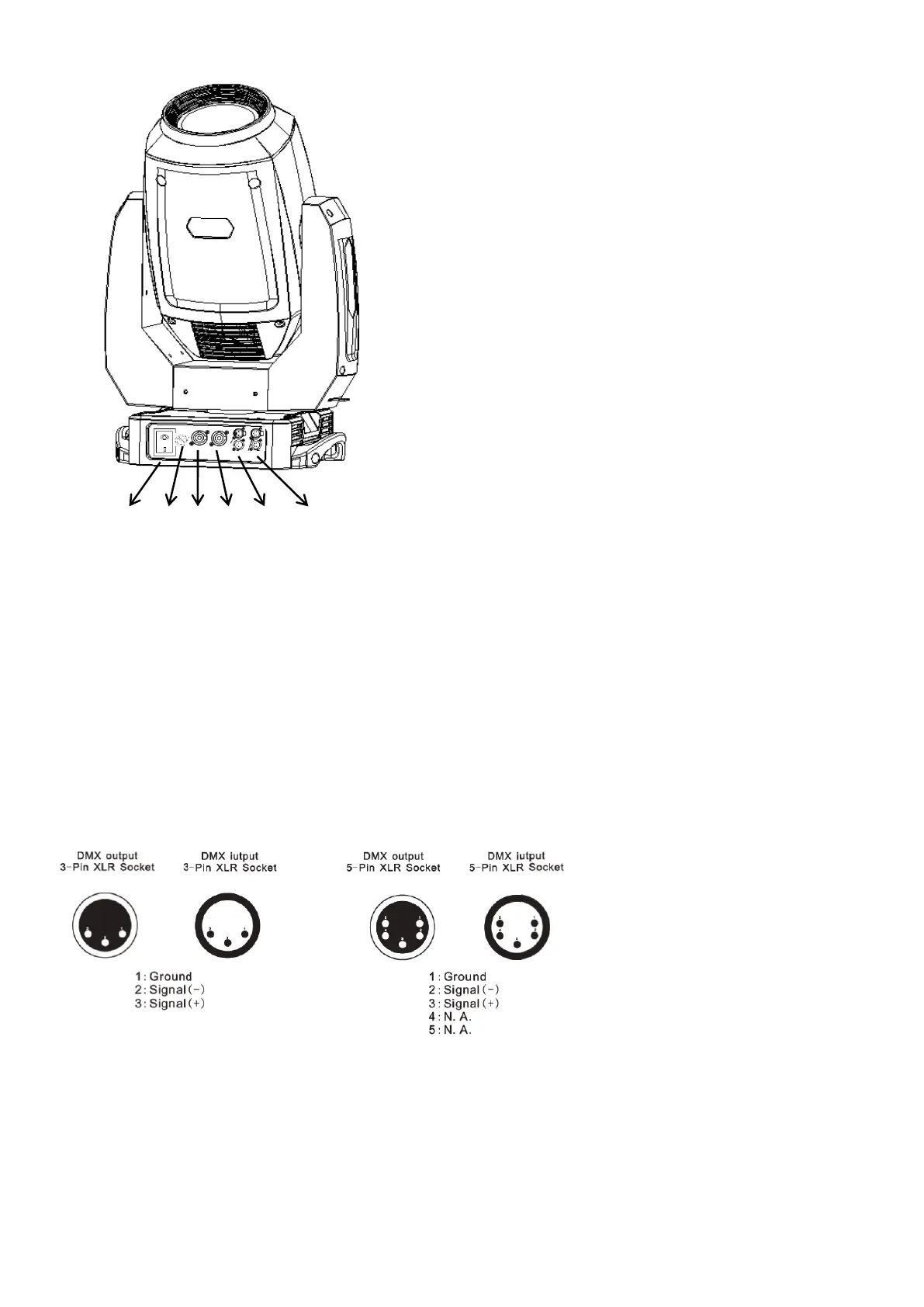

3.3 Connections:
1. ON / OFF button.
2. Fuse holder for F8A 250V fuse.
3. Powercon compatible AC power input.
4. Powercon compatible mains power output.
5. 3-pin and 5-pin XLR output jack for routing the DMX control signal.
6. 3-pin and 5-pin XLR input jacks for connecting a DMX controller (such as DMX mixer).
When changing the fuse, always disconnect the mains plug and only use the specified fuse types!
DMX connection in DMX mode:
An XLR jack serves as a DMX output, an XLR plug serves as a DMX input.
3-pin XLR- Connector: 5-pin XLR-Connector:
Pin Function: Pin Function:
1. Ground 1. Ground
2. DMX- 2. DMX-
3. DMX+ 3. DMX+
4. free, or 2. connection (2nd link, optional) DMX
5. free, or 2. connection (2nd link, optional) DMX+
