V can be separated from f and f can be adjusted
through the frequency given channel set by
P00.06 or the voltage given channel set by P04.27
to change the feature of the curve.

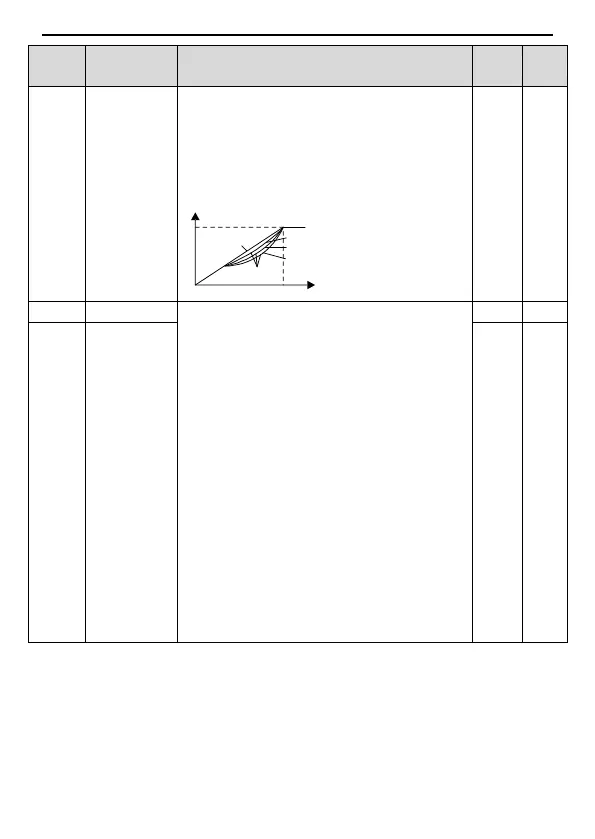

Note: V
b
in the below picture is the motor rated
voltage and f
b
is the motor rated frequency.
Output voltage
Output frequency
Linear type
Square type
Torque-stepdown characteristics V/F curve (1.3 order)
Torque-stepdown characteristics V/F curve (1.7 order)
Torque-stepdown characteristics V/F curve (2.0 order)
V
b
f
b
Torque boost to the output voltage for the features
of low frequency torque. P04.01 is for the Max.
output voltage Vb.
P04.02 defines the percentage of closing
frequency of manual torque to fb.
Torque boost should be selected according to the
load. The bigger the load is, the bigger the torque
is. Too big torque boost is inappropriate because
the motor will run with over magnetic, and the
current of the inverter will increase to add the
temperature of the inverter and decrease the
efficiency.
When the torque boost is set to 0.0%, the inverter
is automatic torque boost.
Torque boost threshold: below this frequency
point, the torque boost is valid, but over this
frequency point, the torque boost is invalid.
