BPD series PV pumping inverter Installation guide
54
the inverter on a wall.

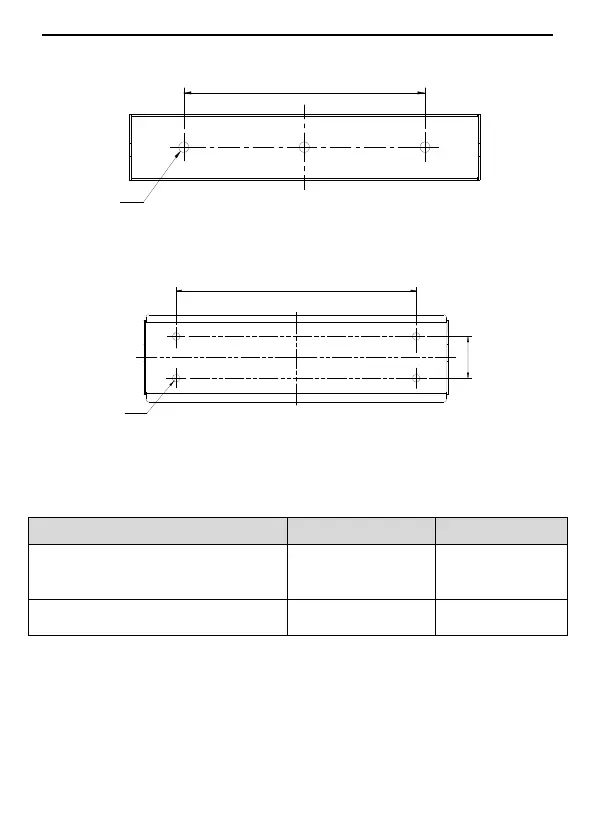

Figure 5.3 Installation bracket 1 for models of BPD0K7–2K2TN(AC)
Figure 5.4 Installation bracket 2 for models of BPD2K2–5K5TRAC(S) and
BPD004TNAC
Sizes of installation brackets
Installation steps of a PV pumping inverter:
(1) First, take down the installation bracket from the machine by only removing the M5
screws;
(2) Then use expansion bolts to fix the installation bracket at the proper location of a
wall;
(3) Lift the inverter to suspend it on the installation bracket through the M8 screws;
(4) Finally, fasten the M5 screws to fix the inverter on the bracket. For firm installation,
