Detailed Function Description
45
Reference frequency = reference frequency A + reference frequency B.
3: Both Frequency command source A and B are active.
Reference frequency = Max (reference frequency A, reference frequency B).
Notice: The frequency command source can be selected not only P0.06 but also
by multifunctional terminals. Please refer to description of P5 Group.

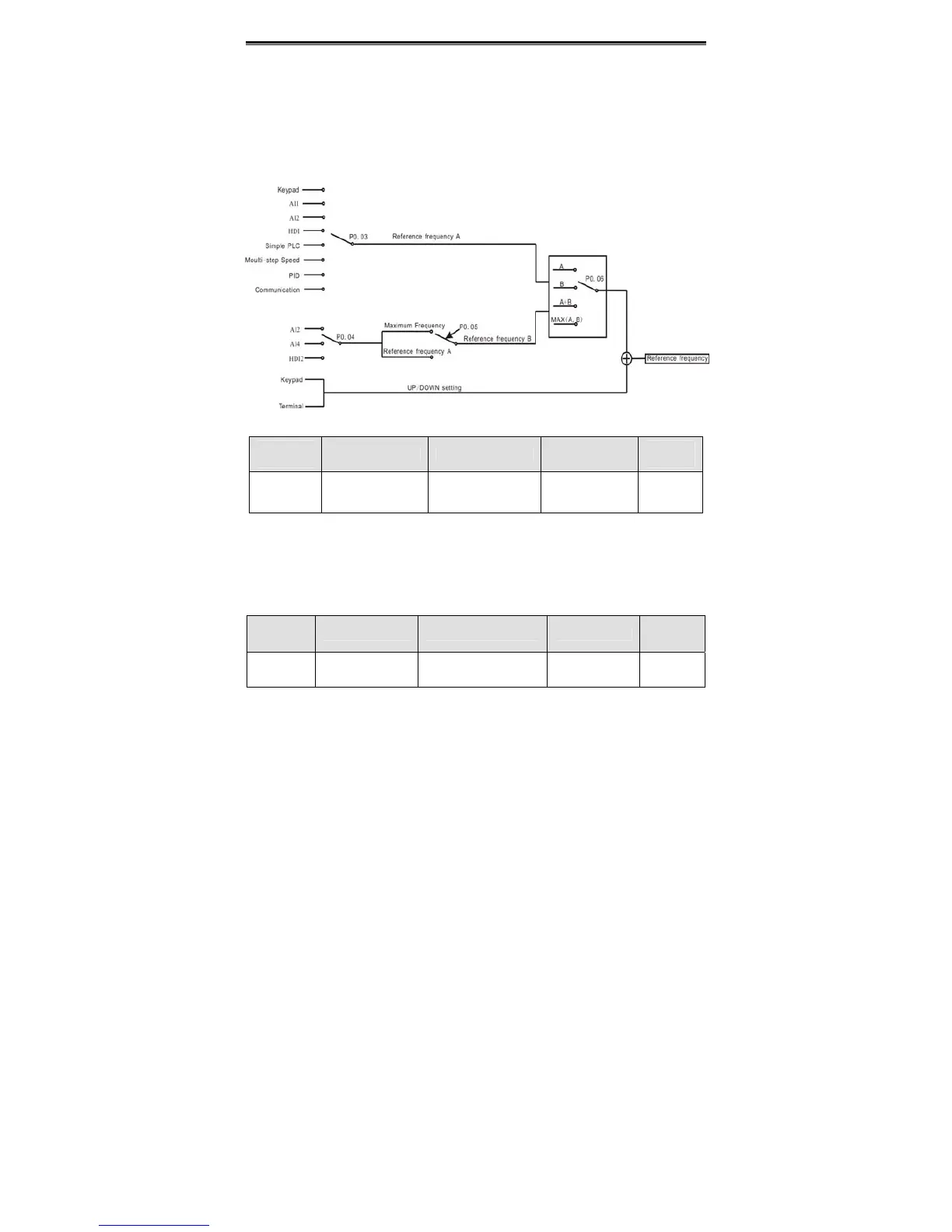

Figure 6.1 Reference frequency diagram.
Function
Code
Name Description Setting Range
Factory
Setting
P0.07
Maximum
frequency
10~400.00Hz 10.0~400.00 50.00Hz
Notice:
z The frequency reference should not exceed maximum frequency.
z Actual acceleration time and deceleration time are determined by maximum
frequency. Please refer to description of P0.11 and P0.12.
Function
Code
Name Description Setting Range
Factory
Setting
P0.08
Upper frequency
limit
P0.09~P0.07 P0.09~P0.07 50.00Hz
Notice:
z Upper frequency limit should not be greater than the maximum frequency
(P0.07).
z Output frequency should not exceed upper frequency limit.
