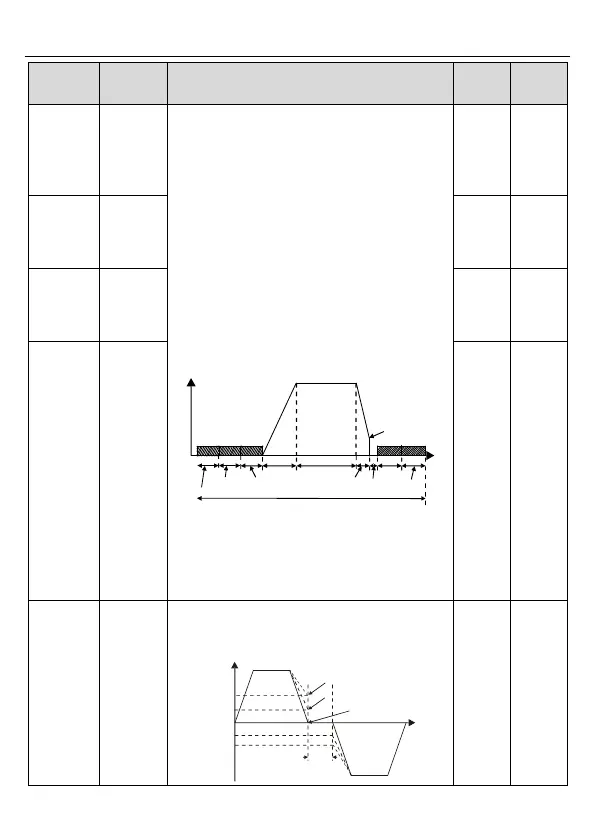

INVT GD10-0R4G-S2-B User Manual

Goodrive10 Series Mini VFD Function parameters
-33-
Function
code
Name
Description
Default
Modify
P01.09
Starting
frequency
of DC
braking for
stop
Starting frequency of DC braking for stop: During
the deceleration to stop, the VFD starts DC
braking for stop when running frequency reaches
the starting frequency determined by P1.09.
Waiting time before DC braking: The VFD blocks
the output before starting DC braking. After this
wait time, DC braking is started so as to prevent
overcurrent caused by DC braking at high speed.
DC braking current for stop: The value of P01.11
is the percentage of rated current of VFD.
Stronger current indicates greater DC braking
effect.
DC braking time for stop: It indicates the hold
time of DC braking. If the time is 0, DC braking is
invalid, and the VFD coasts to stop.
P01.04
ACC
P1314.
P0123.
Constant
speed
In running
DEC
P0110.
P1315.
P01.12
P01.09
t
Setting range of P01.09: 0.00Hz–P00.03 (max.
output frequency)
Setting range of P01.10: 0.0–50.0s
Setting range of P01.11: 0.0–100.0%
Setting range of P01.12: 0.0–50.0s
0.00Hz
○
P01.10
Waiting
time
before DC
braking
0.00s
○
P01.11
DC
braking
current for
stop
0.0%
○
P01.12
DC
braking
time for
stop
0.00s
○
P01.13
FWD/REV
running
deadzone
time
This function code indicates the transition time
specified in P01.14 during FWD/REV rotation
switching. See the following figure.
Output frequency f
FWD
REV
Deadzone
time
Time t
Start frequency
Switch at the zero frequency
Switch at the start frequency
Switch at the stop speed
Stop speed
0.00s
○
