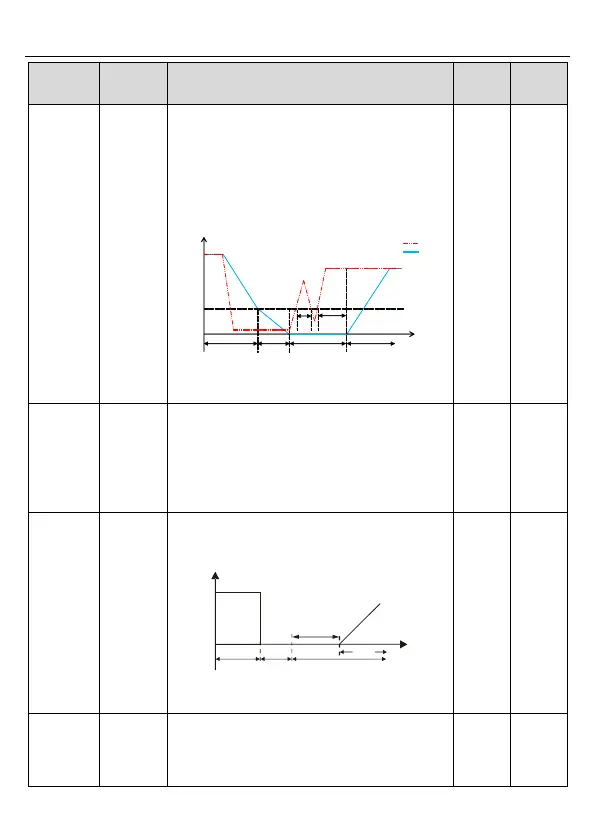

INVT GD10-0R4G-S2-B User Manual

Goodrive10 Series Mini VFD Function parameters
-35-
Function
code
Name
Description
Default
Modify
P01.20
Wake-up–f
rom-sleep
delay
This function code determines the
wake-up-from-sleep delay time. When the
running frequency of the VFD is lower than the
lower limit, the VFD becomes standby.
When the set frequency exceeds the lower limit
one again and it lasts for the time set by P01.20,
the VFD runs automatically.
Set frequency curve:
Running frequency curve:
Run Sleep
t2
t1
Run
Frequency
lower limit f0
Frequency f
Time t
Coast to
stop
t1 < P01.20, the VFD does not run
t1+t2 ≥P01.20, the VFD runs
Setting range: 0.0–3600.0s (valid when
P01.19=2)
0.0s
○
P01.21
Power-off
restart
selection
This function can enable the VFD start or not
after the power off and then power on.
0: Disabled
1: Enabled, if the starting need is met, the VFD
will run automatically after waiting for the time
defined by P01.22.
0
○
P01.22
Wait time
for restart
after
power-off
The function indicates the wait time before the
automatic running of the VFD that is re-powered
on.
Output frequency f
Running
Powered off
Powered on
Running
Time t
t1
t1=P01.22
Setting range: 0.0–3600.0s (valid when
P01.21=1)
1.0s
○
P01.23
Start delay
After a VFD running command is given, the VFD
is in standby state and restarts with the delay
defined by P01.23 to implement brake release.
Setting range: 0.0–60.0s
0.0s
○
