INVT GD10-0R4G-S2-B User Manual

Goodrive10 Series Mini VFD Function parameters
-59-
Function
code
Name
Description
Default
Modify
Output frequency
FDT level
Y, RO
FDT lag
Setting range of P08.32: 0.00Hz–P00.03
(max. output frequency)
Setting range of P08.33: 0.0–100.0%(FDT
electrical level)
P08.36
Detection
value for
frequency
being
reached

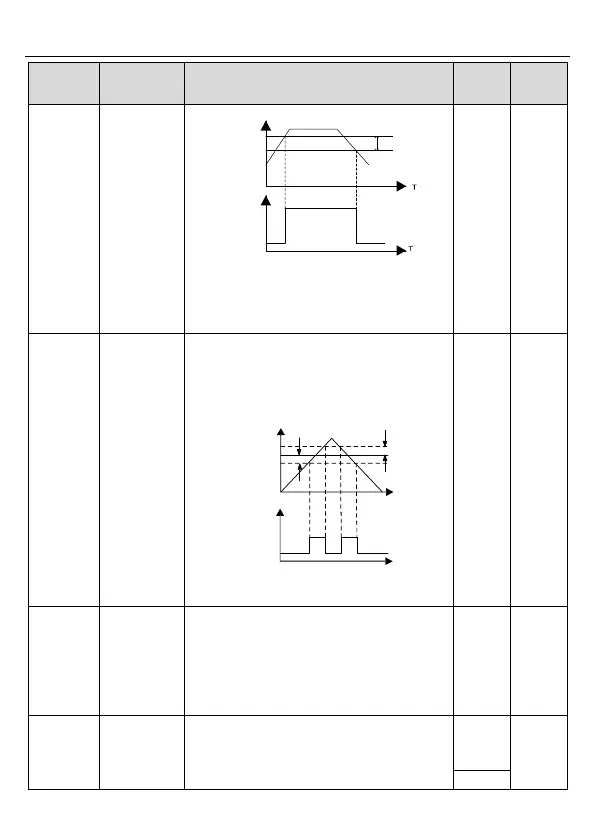

When the output frequency is within the
detection range, the multi-function digital
output terminal outputs the signal of
"Frequency reached". Ssee the diagram
below for detailed information:
Y, RO
Output frequency
t
Setting
frequency
P08.36
t
P08.36
Setting range: 0.00Hz–P00.03 (max. output
frequency)
0.00Hz
○
P08.37
Energy
consumption
braking
enabling
The function code is used to control enabling
of the brake tube action inside the VFD.
0: Disable
1: Enable
Note: It is only applicable to VFD models that
are built in braking tubes.
0
○
P08.38
Energy
Braking
threshold
voltage
The function code is used to set the starting
bus voltage of energy consumption braking.
Adjust this value properly to achieve effective
braking for the load. The default value varies
220V
voltage:
380.0V
○
380V
