Goodrive20 inverters Installation guidelines
16

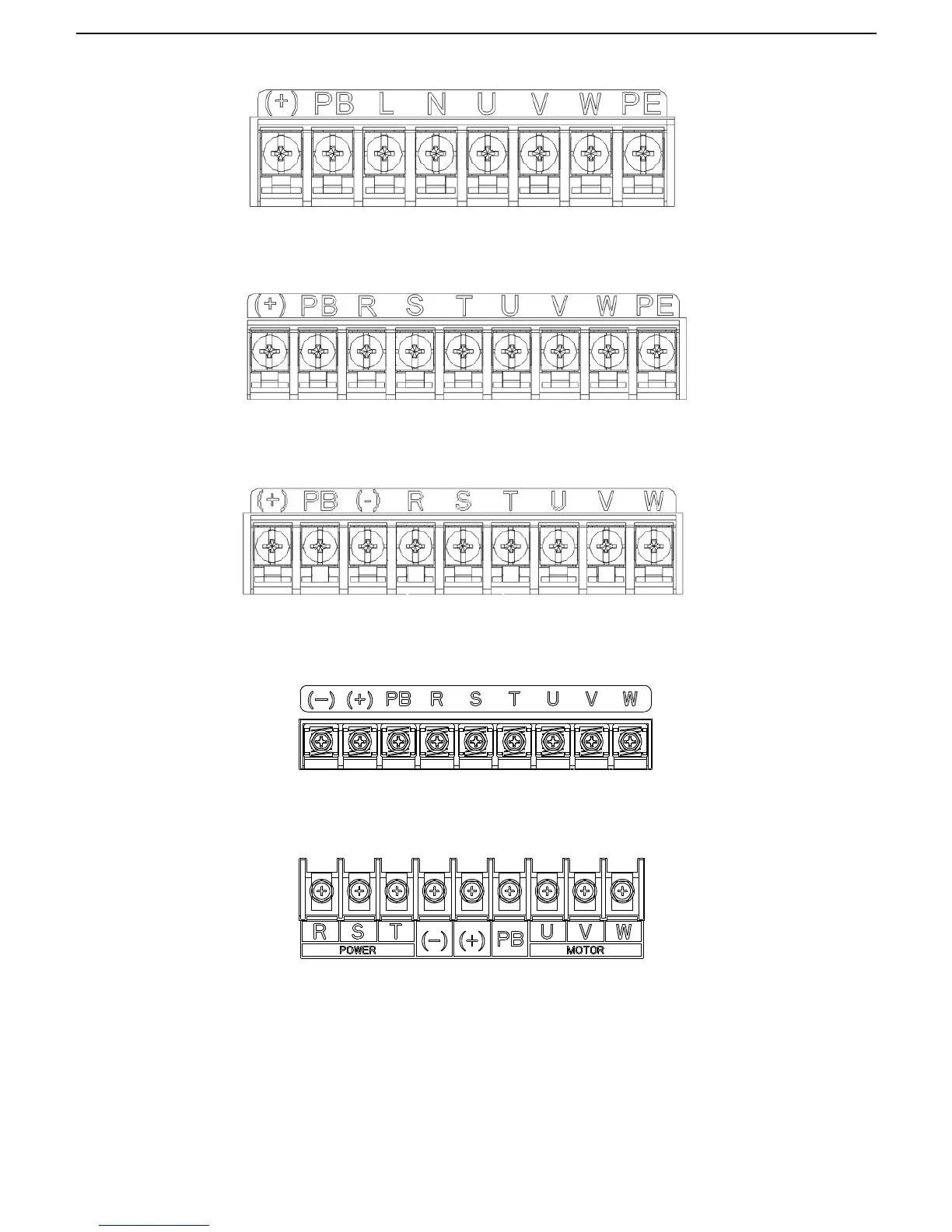

3.2.2 Terminals figure of main circuit
Figure 3-4 1PH terminals of main circuit (single phase)
Figure 3-5 3PH terminals of main circuit (220V, ≤0.75kW, and 380V, ≤2.2kW)
Figure 3-6 3PH terminals of main circuit (220V, ≤1.5kW, and 380V, 4-22kW)
Figure 3-7 3PH terminals of main circuit (30-37kW)
Figure 3-8 3PH terminals of main circuit (45-110kW)
