Goodrive20 inverters Keypad operation procedure
23

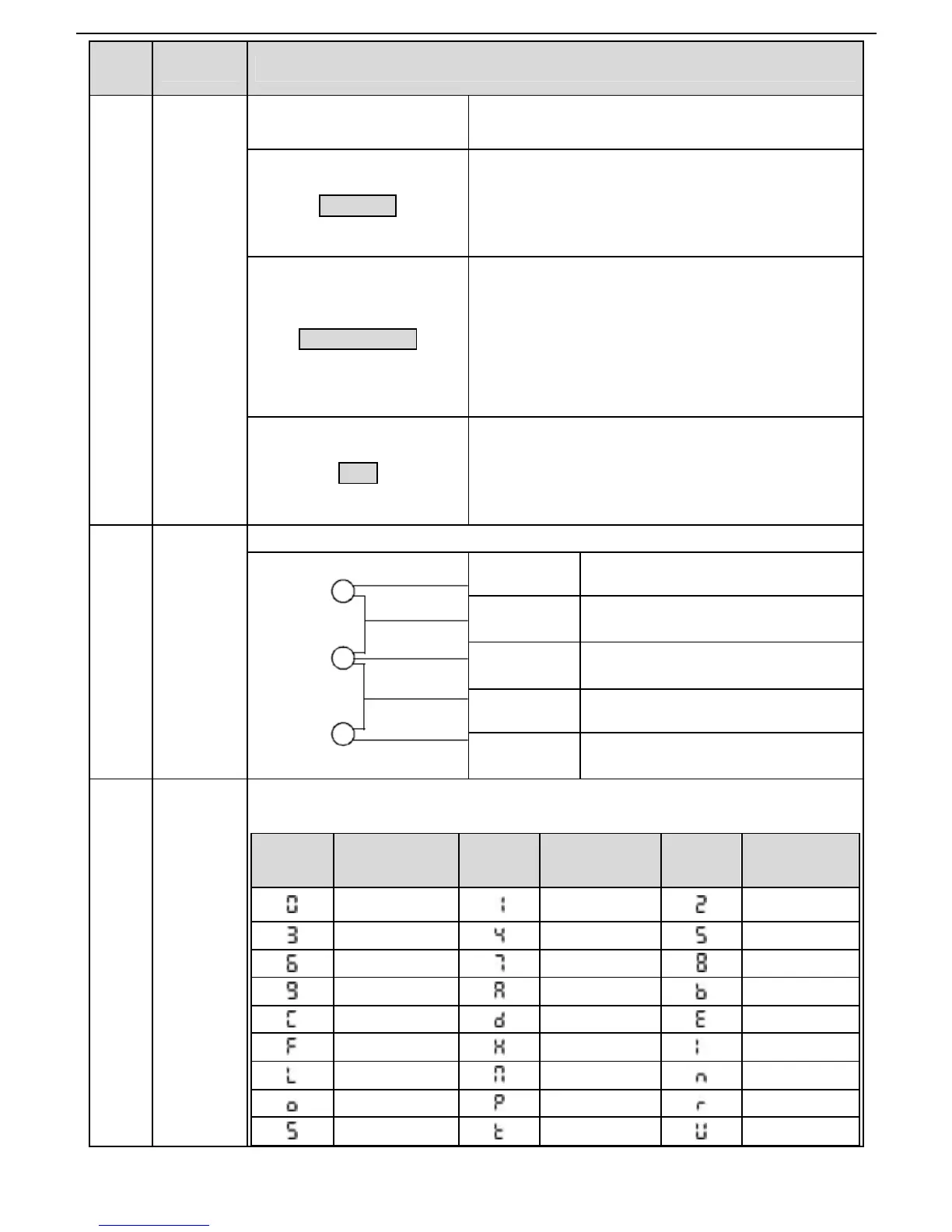

Serial
No.
Name Description
parameter autotune state; LED on means the
inverter is in the running state.
FWD/REV
FED/REV LED
LED off means the inverter is in the forward rotation
state; LED on means the inverter is in the reverse
rotation state
LOCAL/REMOT
LED for keypad operation, terminals operation and
remote communication control
LED off means that the inverter is in the keypad
operation state; LED blinking means the inverter is in
the terminals operation state; LED on means the
inverter is i
n the remote communication control state.
TRIP
LED for faults
LED on when the inverter is in the fault state; LED off
in normal state; LED blinking means the inverter is in
the pre-alarm state.
2 Unit LED
Mean the unit displayed currently
Hz Frequency unit
RPM Rotating speed unit
A Current unit
% Percentage
V Voltage unit
3
Code
displaying
zone
5-figure LED display displays various monitoring data and alarm code such as set
frequency and output frequency.
Displayed
word
Corresponding
word
Displayed
word
Corresponding
word
Displayed
word
Corresponding
word
0 1 2
3 4 5
6 7 8
9 A B
C d E
F H I
L N n
o P r
S t U
