INVT GD300-037G-4 User Manual

Goodrive300 Series VFD Installation guide
19
4.2.4 Installation of one VFD
A
B
A
B
C
C
Cool air
Warm air

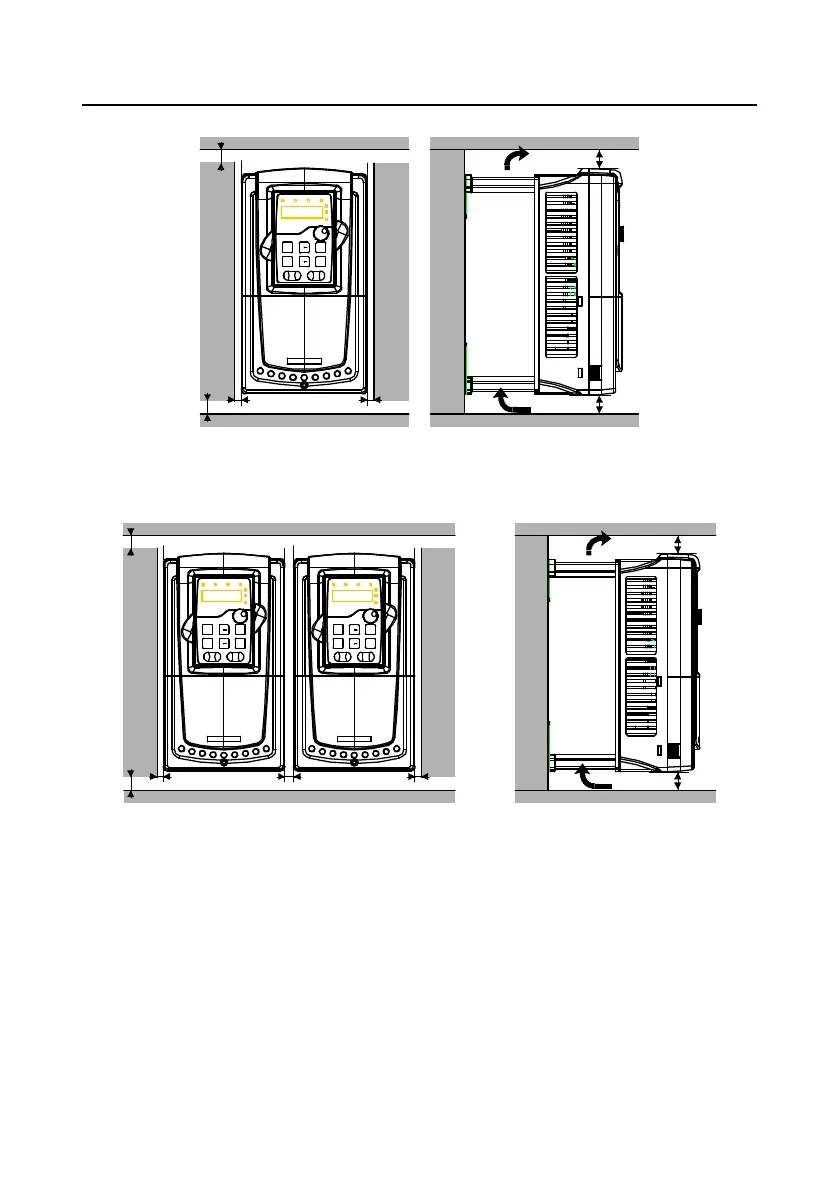

Figure 4-3 Stand-alone installation
Note: The minimum space of B and C is 100 mm.
4.2.5 Installation of multiple VFDs
B
C
C
B
A
A
D
Cool air
Warm air
Figure 4-4 Parallel installation
Note:
 Before installing the different sizes VFDs, please align their top position for the convenience of
later maintenance.
 The minimum space of B, D and C is 100 mm.
