INVT GD300-037G-4 User Manual

Goodrive300 Series VFD Installation guide
26

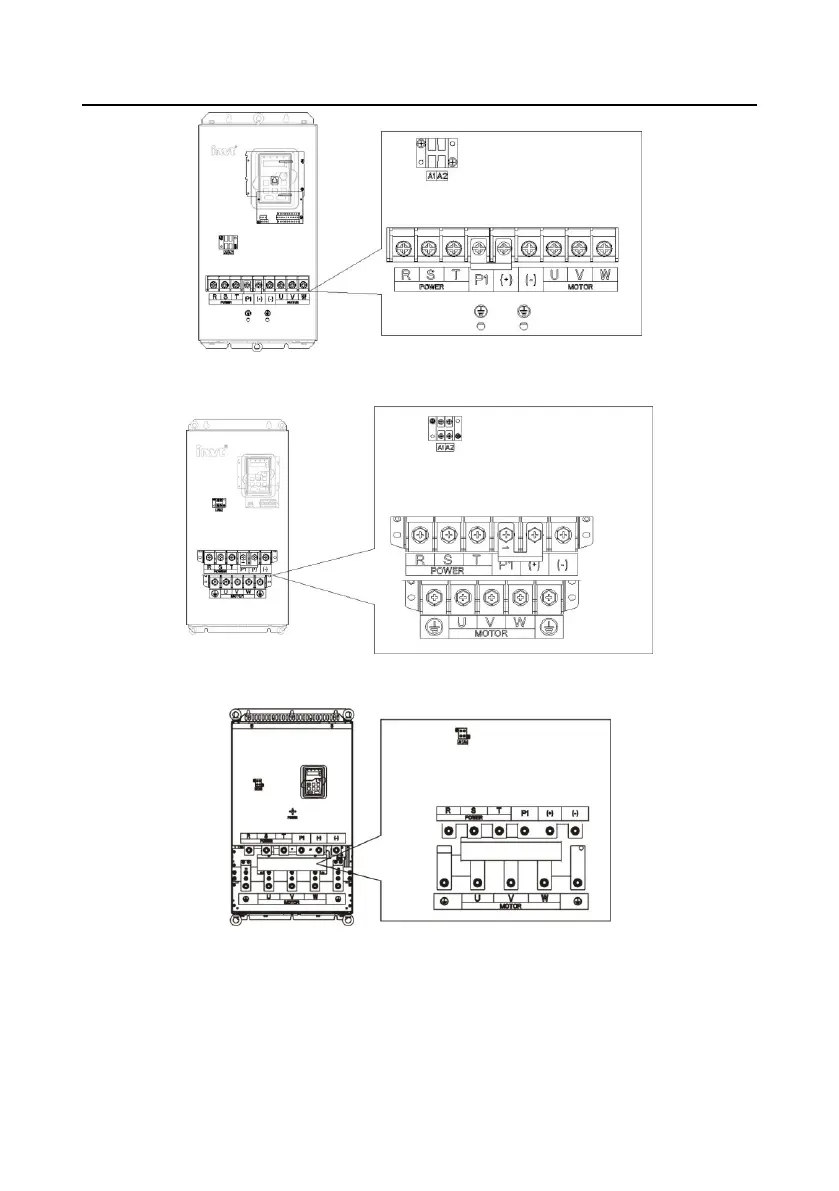

Figure 4-15 Main circuit terminals diagram of VFDs of 380V (37–55kW), 500V (22–55kW), and 660V
(22–45kW)
Figure 4-16 Main circuit terminals diagram of VFDs of 380V (75–110kW), 500V (75kW), and 660V
(55–132kW)
Figure 4-17 Main circuit terminals diagram of VFDs of 380V (132–200kW) and 660V (160–220kW)

INVT GD300-037G-4 Specifications

General

Brand	INVT
Model	GD300-037G-4
Category	DC Drives
Language	English
