Goodrive300 Series VFD Installation guide
20
4.2.6 Vertical installation
Wind board
Wind board
Cool air
Cool air
Warm air
Warm air

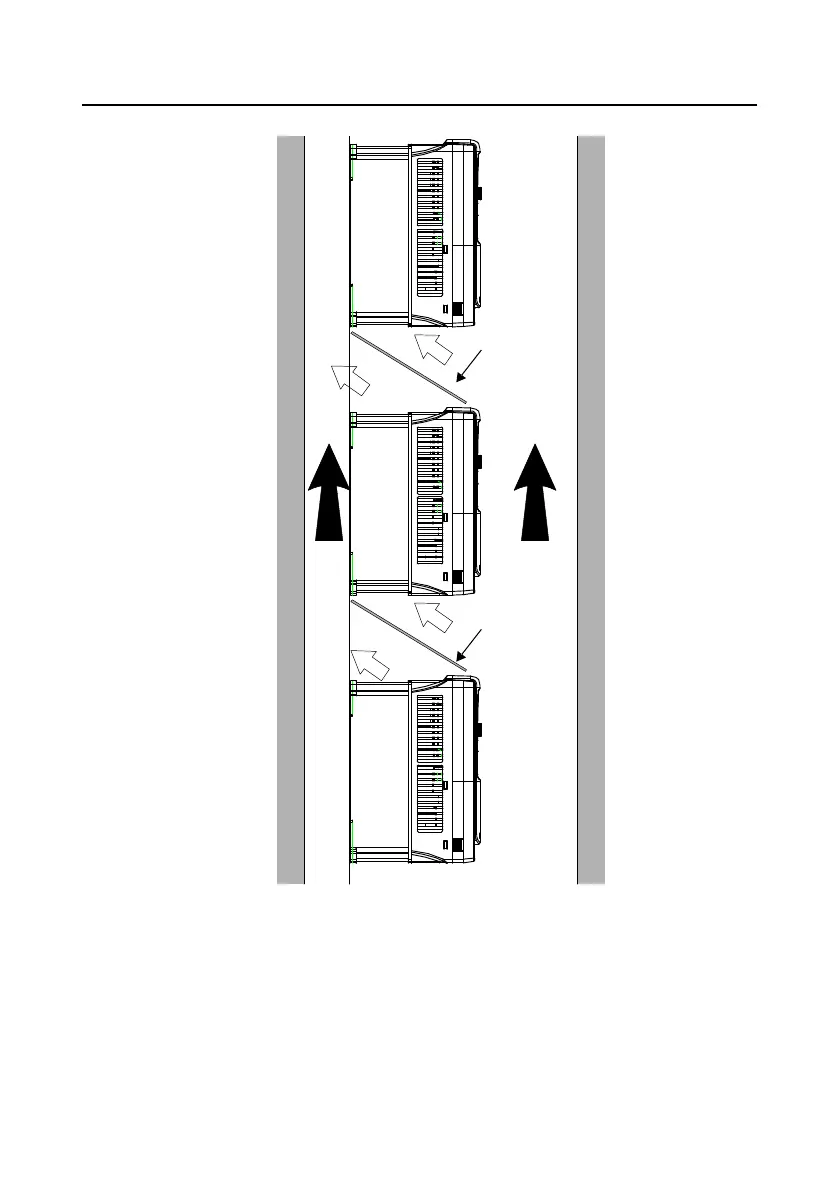

Figure 4-5 Vertical installation
Note: Windscreen should be installed in vertical installation to prevent mutual impact and insufficient
cooling.
