INVT GD300-075G-4

Goodrive300 Series VFD Installation guide
22
4.3 Standard wiring
4.3.1 Main circuit connection diagram
4.3.1.1 Main circuit connection diagram of VFDs of AC 3PH 380V (-15%)–440V (+10%)
R
S
T
W
V
U
PE
M
VFDs (≤30 kW)
(+)
PB
AC 3PH
380V (-15%)–440V (+10%)
50/60Hz
Brake resistor
Input
reactor
Input
filter
Fuse
A1
A2
Single-phase 220V
(optional)
Output
reactor
Output
filter
(-)
R
S
T
W
V
U
PE
M
VFDs (≥37 kW)
P1
(+)
DC reactor
(-)
Input
reactor
Input
filter
Fuse
A1
A2
Output
reactor
Output
filter
DC-
Brake resistor
DC+
Brake unit
Single-phase 220V
(optional)
AC 3PH
380V (-15%)-440V (+10%)
50/60Hz

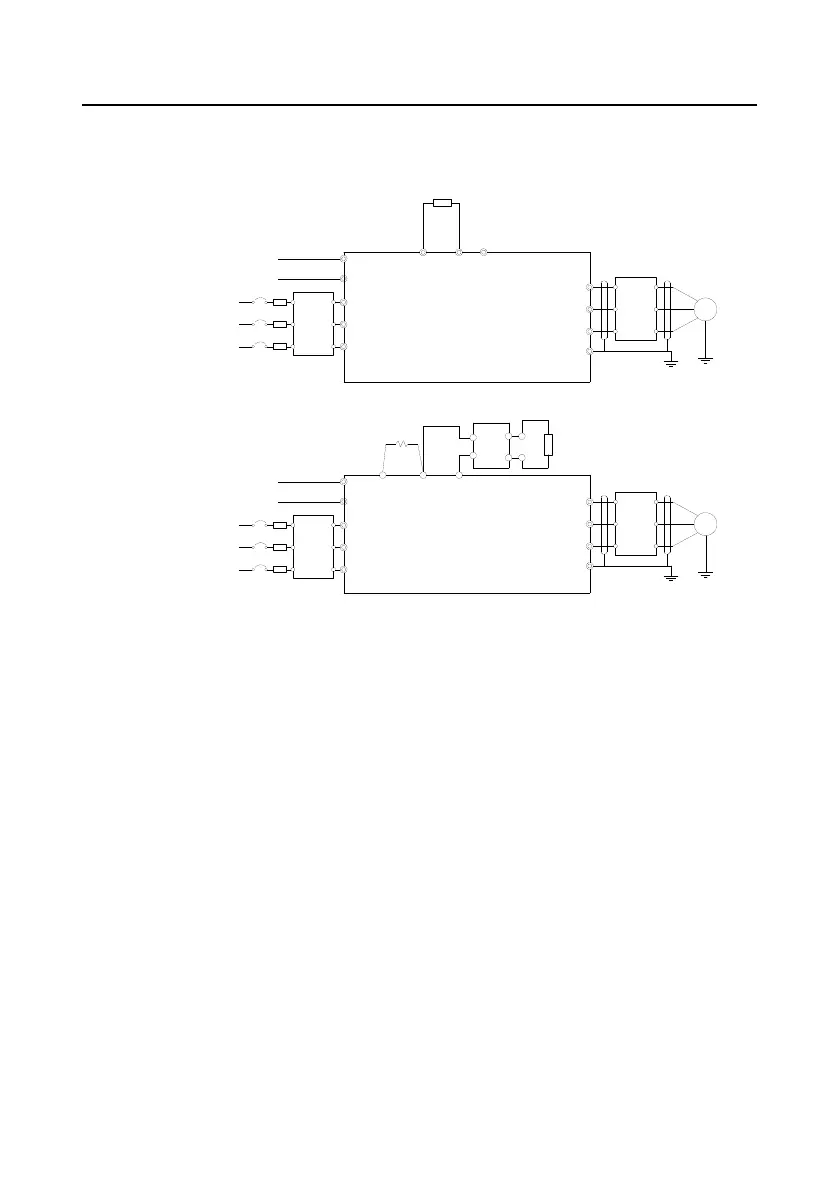

Figure 4-7 Main circuit connection diagram of 380V VFDs
Note:
 The fuse, DC reactor, braking unit, braking resistor, input reactor, input filter, output reactor,
output filter are optional parts. Please refer to Appendix D "Peripherial options and parts" for detailed
information.
 A1 and A2 are optional parts.
 P1 and (+) are short circuited in factory for the VFDs of 380V (≥37kW), if need to connect with
the DC rector, please remove the contact tag between P1 and (+).
 Before connecting the braking resistor cable, remove the yellow labels of PB, (+), and (-) from
the terminal blocks. Otherwise, poor connection may occur.
