Goodrive300 Series VFD Dimension drawings
260

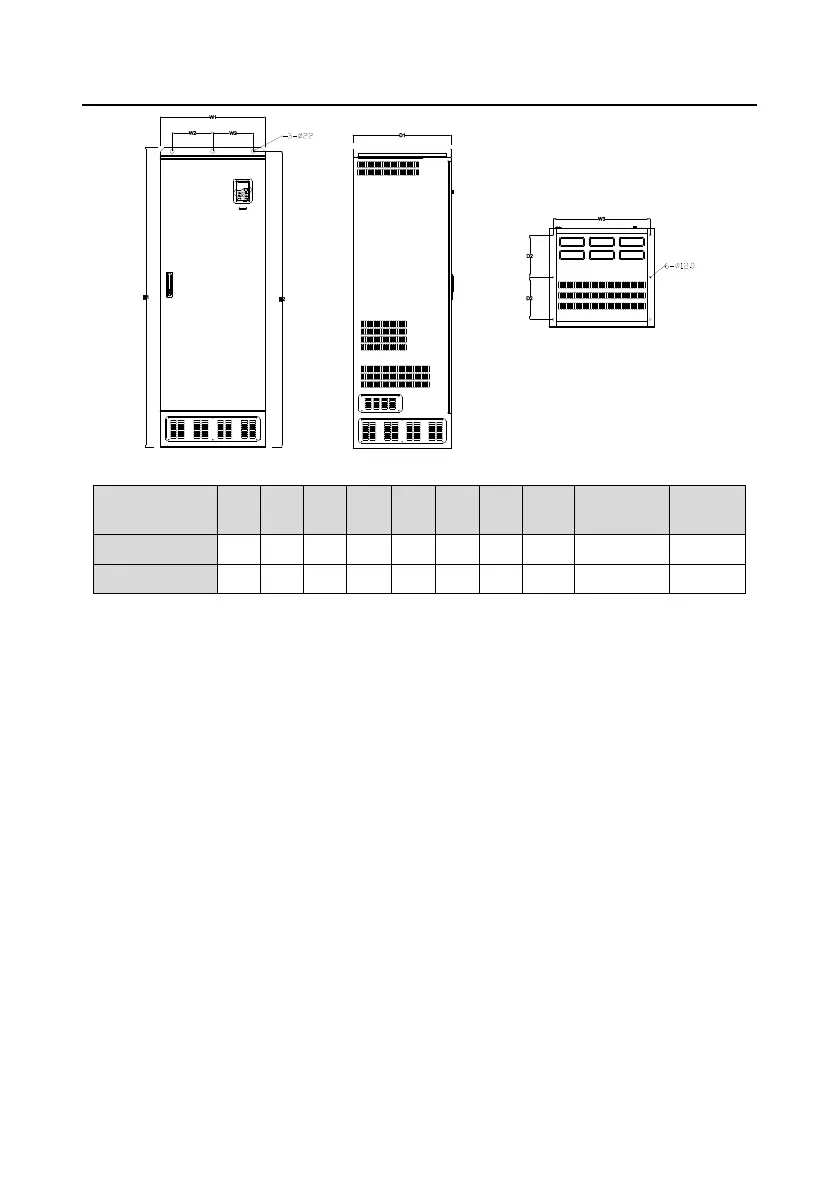

Floor installation of 660V 400-630kW VFDs
Model
W1
W2
W3
W4
H1
H2
D1
D2
Installation
hole
Weight
(kg)
250kW–350kW
750
230
714
680
1410
1390
380
150
13\12
135
400kW–630kW
620
230
573
\
1700
1678
560
240
22\12
390
