INVT GD300-075G-4 - Page 30

Goodrive300 Series VFD Installation guide
25

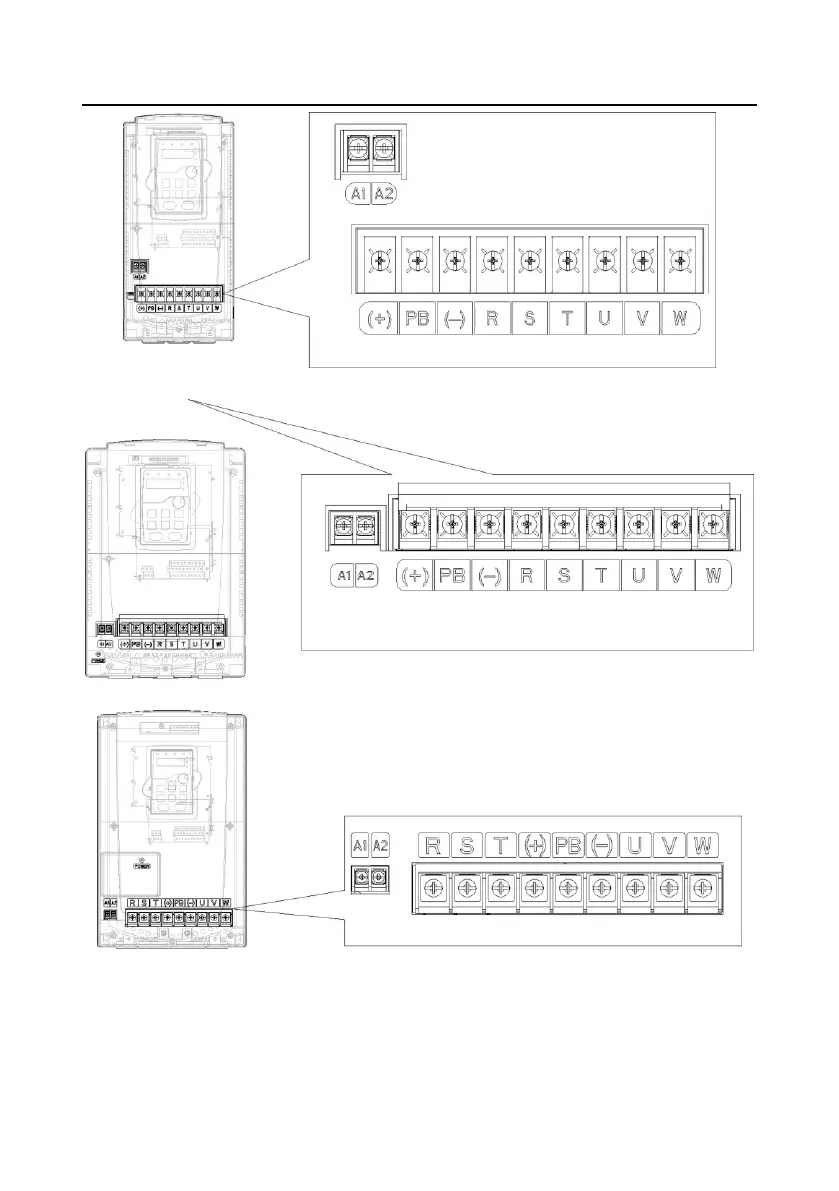

Figure 4-12 Main circuit terminals diagram of VFDs of 380V (7.5–11kW) and 500V (4–18.5kW)
Figure 4-13 Main circuit terminals diagram of VFDs of 380V (15–18kW)
Figure 4-14 Main circuit terminals diagram of VFDs of 380V (22–30kW)
