Goodrive20-EU series VFD Function parameters
41
Function
code
Name
Detailed instruction of parameters
Default
value
Modify

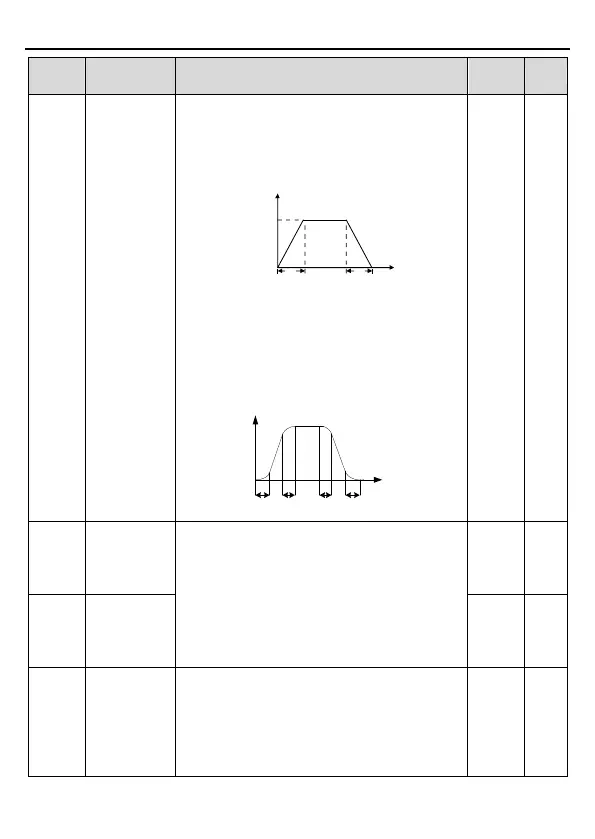

P01.05
Acceleration/
deceleration
selection
The changing mode of the frequency during
start-up and running.
0: Linear type
The output frequency increases or decreases
linearly.
fmax
Output frequency
t1 t2
T
1: S curve
The output frequency increases or decreases
progressively according to the S curve. The S
curve type is generally applied in elevators,
conveyors, and other application scenarios
where smoother start or stop is required.
Output frequency
t
t1 t2 t1 t2
t1=P01.06; t2=P01.07
0
◎
P01.06
Acceleration
time of the
starting step of
S curve
Setting rage: 0.0–50.0s
Note: Effective when P01.05 is 1
0.1s
◎
P01.07
Deceleration
time of the
ending step of
S curve
0.1s
◎
P01.08
Stop selection
0: Decelerate to stop: after the stop command
becomes valid, the VFD decelerates to reduce
the output frequency during the set time. When
the frequency decreases to 0Hz, the VFD stops.
1: Coast to stop: after the stop command
becomes valid, the VFD ceases the output
0
○
