Input filter time: this parameter is used to adjust
the sensitivity of the analog input. Increasing the
value properly can enhance the anti-interference
of the analog, but weaken the sensitivity of the
analog input
Note: AI1 supports 0 – 10V input and AI2
supports 0 – 10V or 0 – 20mA input, when AI2
selects 0 – 20mA input, the corresponding
voltage of 20mA is 10V. AI3 can support the
output of -10V – +10V.
Setting range of P05.32: 0.00V – P05.34
Setting range of P05.33: -100.0% – 100.0%
Setting range of P05.34: P05.32 – 10.00V
Setting range of P05.35: -100.0% – 100.0%
Setting range of P05.36: 0.000s – 10.000s
Setting range of P05.37: 0.00V – P05.39
Setting range of P05.38: -100.0% – 100.0%
Setting range of P05.39: P05.37 – 10.00V
Setting range of P05.40: -100.0% – 100.0%
Setting range of P05.41: 0.000s – 10.000s
Setting range of P05.42: -10.00V – P05.44
Setting range of P05.43: -100.0% – 100.0%
Setting range of P05.44: P05.42 – P05.46
Setting range of P05.45: -100.0% – 100.0%
Setting range of P05.46: P05.44 – 10.00V
Setting range of P05.48: 0.000s – 10.000s
P05.39
Upper limit of

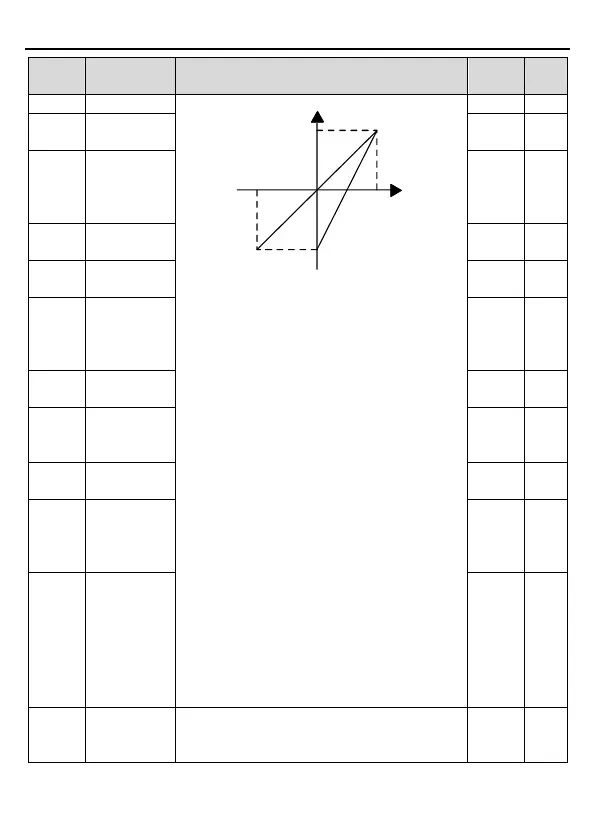

AI2
10.00V
○
P05.40
Corresponding
setting of
the upper limit
of AI2
100.0%
○
P05.41
AI2 input filter
time
0.100s
○
P05.42
Lower limit of
AI3
-10.00
V
○
P05.43
Corresponding
setting of the
lower limit of
AI3
-100.0
%
○
P05.44
Middle value of
AI3
0.00V
○
P05.45
Corresponding
middle setting
of AI3
0.0%
○
P05.46
Upper limit of
AI3
10.00V
○
P05.47
Corresponding
setting of
the upper limit
of AI3
100.0%
○
P05.48
AI3 input filter
time
0.100s
○
P05.50
Lower limit
frequency of
HDI
0.000kHz – P05.52
0.000
kHz
○
