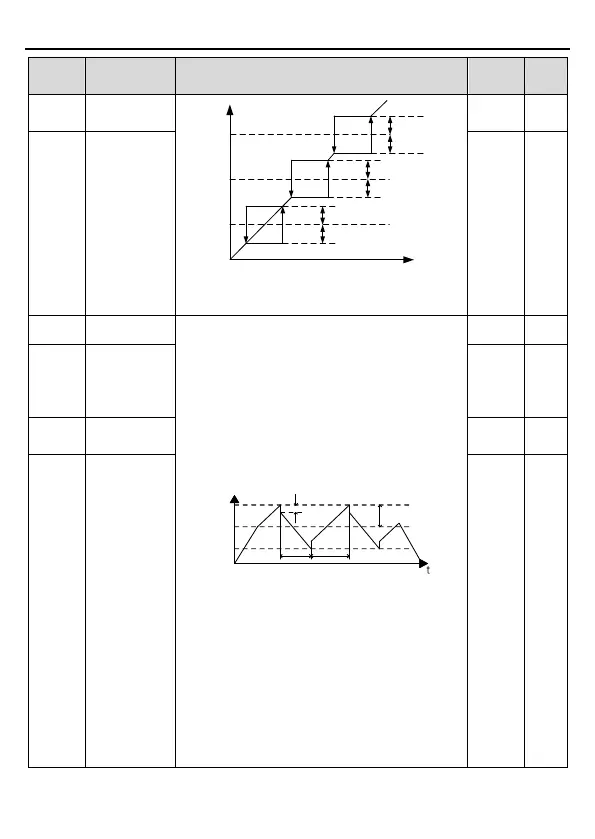

INVT Goodrive20-EU VFD Series User Manual

Goodrive20-EU series VFD Function parameters
75
Function
code
Name
Detailed instruction of parameters
Default
value
Modify
P08.13
Jumping
frequency 3
Set frequency f
Time t
Jump
frequency 2
1/2*Jump
frequency range 2
1/2*Jump
frequency range 2
Jump
frequency 1
1/2*Jump
frequency range 1
1/2*Jump
frequency range 1
Jump
frequency 3
1/2*Jump
frequency range 3
1/2*Jump
frequency range 3
Setting range: 0.00 – P00.03 (the max.
frequency)
0.00Hz
○
P08.14
Jumping
frequency
range 3
0.00Hz
○
P08.15
Traverse range
This function applies to the industries where
traverse and convolution function are required
such as textile and chemical fiber.
The traverse function means that the output
frequency of the VFD is fluctuated with the set
frequency as its center. The route of the running
frequency is illustrated as below, of which the
traverse is set by P08.15 and when P08.15 is set
as 0, the traverse is 0 with no function.
Output frequency
Jumping frequency
Accelerate
Decelerate per
dec. time
Wobble frequency amplitude
Fall time of
wobble frequency
Rise time of
wobble frequency
Center
frequency
Lower limit of
wobble frequency
Traverse range: The traverse running is limited
by upper and low frequency.
The traverse range relative to the center
frequency: traverse range AW＝center
frequency×traverse range P08.15.
Sudden jumping frequency＝traverse range
AW×sudden jumping frequency range P08.16.
When run at the traverse frequency, the value
which is relative to the sudden jumping
frequency.
0.0%
○
P08.16
Sudden
jumping
frequency
range
0.0%
○
P08.17
Traverse boost
time
5.0s
○
P08.18
Traverse
declining time
5.0s
○
