Goodrive300-01A series VFD for air compressor Commissioning instruction
-20-
5. Click System config in the touch screen to enter the system configuration interface, as shown
in Figure 4-5.

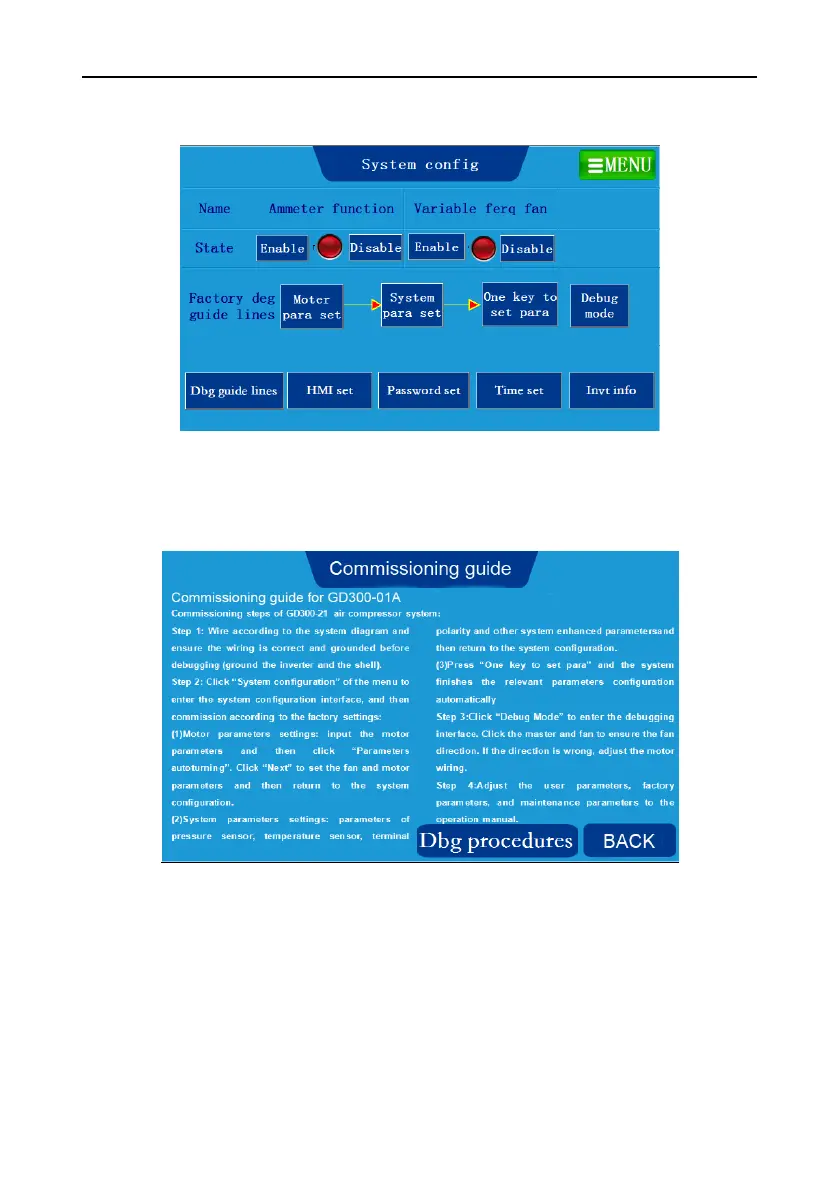

Figure 4-5 System configuration interface
Click Enable for the fan VFD, and perform commissioning according to the commissioning guide.
Step 1: Click Dbg guide lines on the system configuration interface. The page shown in Figure 4-6 is
displayed.
Figure 4-6 Commissioning guide page
After reading through the commissioning guide, click BACK to enter system configuration.
Step 2: Click Motor Para Set on the system configuration interface, as shown in Figure 4-7.
Select motor type, if selecting “SM”, it is necessary to set the maximum frequency, rated frequency,
rated power, rated voltage, rated current, pole pairs, and carrier frequency, as shown in Figure 4-7; if
selecting “AM”, it is necessary to set the maximum frequency, rated frequency, rated power, rated
voltage, rated current , rated speed, and carrier frequency.
