INVT Goodrive350-19 Series

Goodrive350-19 series VFD Product overview
- 8 -
R
S
T
U
V
W
（+）
（-）
DC reactor
P1
PE PE

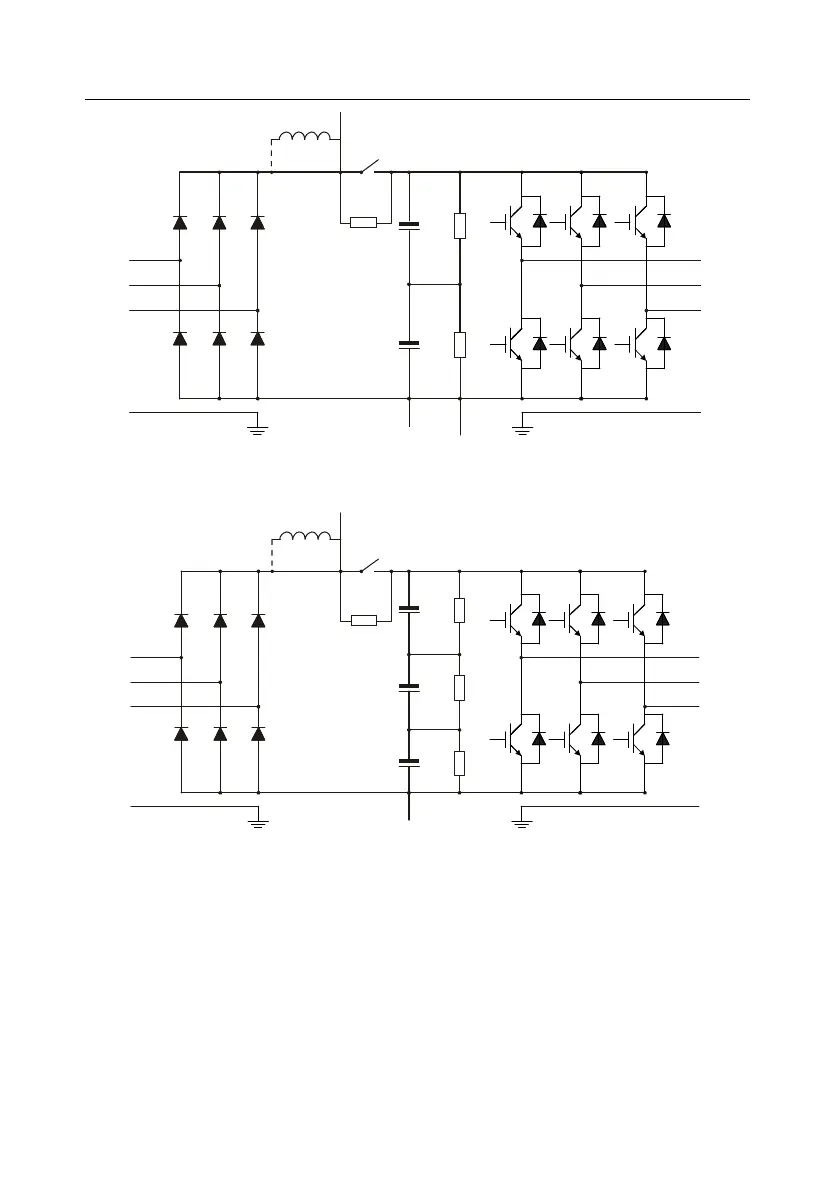

Figure 3.3 Main circuit diagram for 380V 132kW or higher VFD models
R
S
T
U
V
W
（+）
（-）
DC reactor
P1
PE PE
Figure 3.4 Main circuit diagram for 660V VFD models
Note:
 The 132kW or higher VFD models support connection to external DC reactors, but before the
connection, you must remove the short-connection copper bar between P1 and (+). The 132kW
or higher VFD models also support connection to external braking units. Both DC reactor and
braking unit are optional parts.
 DC reactors have been built in the 18.5kW–110kW VFD models.
 Braking units have been built in the 110kW and lower VFD models. The VFD models with built-in
